Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

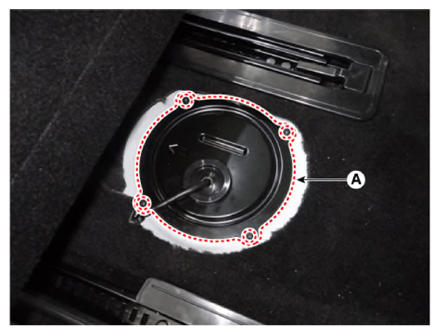

- Remove the fuel pump service cover (A).

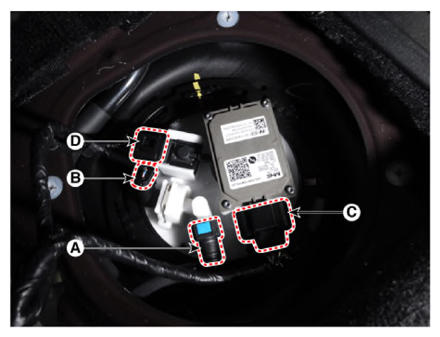

- Disconnect the fuel feed tube quick-connector (A), fuel pressure sensor connector (B) and fuel pump control module connector (C), fuel tank pressure sensor connector (D).

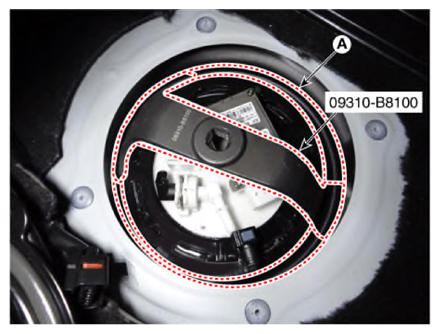

- Remove the fuel pump plate cover (A) by using the special service tool (09310-B8100).

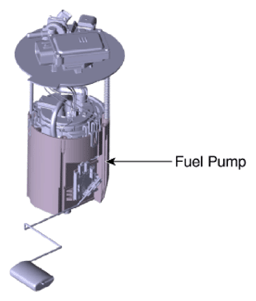

- Remove the fuel pump from the fuel tank.
