Repair Procedures: Installation
- Install the fuel line in the reverse order of removal.

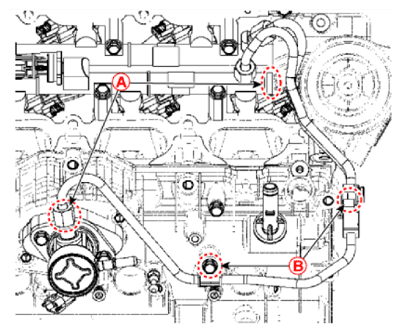

- Install the high-pressure fuel pipe as follows.
- Completely pre-tighten the both side nuts (A) on high pressure tightening area of high pressure fuel pipe while keeping them vertically.
- Tighten the high pressure fuel pipe function block mounting bolt (B).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)
- Completely tighten the both side nuts (A) on high pressure tightening area of high pressure fuel pipe.
Tightening torque:
32.4 - 35.3 N.m (3.3 - 3.6 kgf.m, 23.9 - 26.0 lb.ft)
NOTE:- Do not reuse the high pressure fuel pipe.
- Be careful not to transform the shape of the high pressure fuel pipe.
- Torque wrench should not be tilt when you tighten the nut.
- Follow the order and the tightening torque when you assemble.
- Inspect fuel leakage after high pressure fuel pipe assembly.
- Use the special service tool (OK353-F6100) to install the high pressure fuel pipe.
