Repair Procedures: Removal
- Remove the delivery pipe & injector assembly.
(Refer to Fuel Delivery System - "DELIVERY PIPE ")

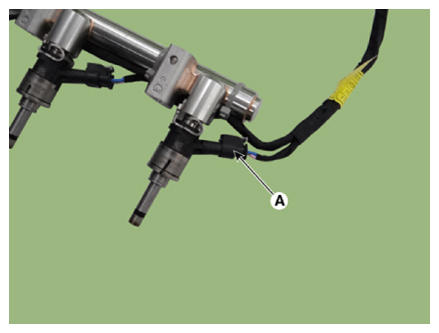

- Disconnect the injector connector (A).

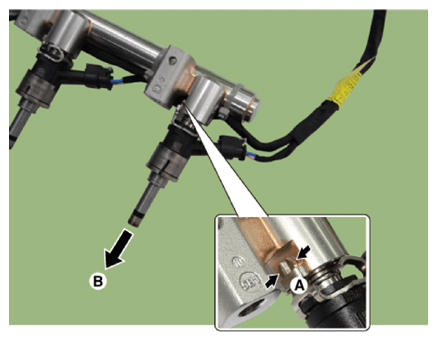

- Remove the injector in the direction of arrow (B) by pressing the pin (A).
