Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the battery.
(Refer to Body Electrical System - "BATTERY ")
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

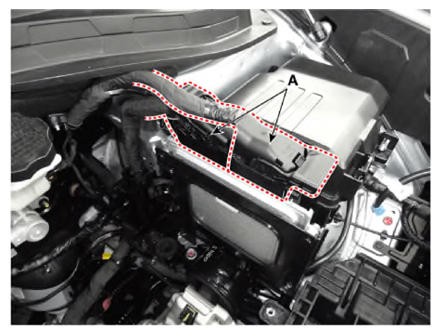

- Disconnect the ECM connector (A).

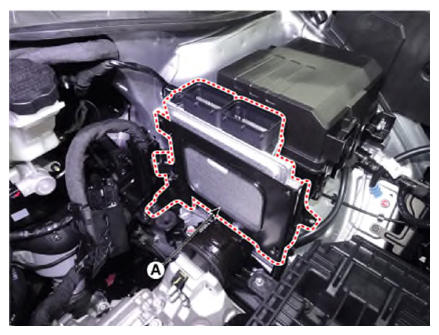

- Remove the ECM bracket assembly (A) after loosening the mounting bolt and nuts.
- Remove the ECM after loosening the mounting nuts and screw.
