Repair Procedures: Cleaning
- Remove the ETC Module.
(Refer to Engine Control System - "Removal ")

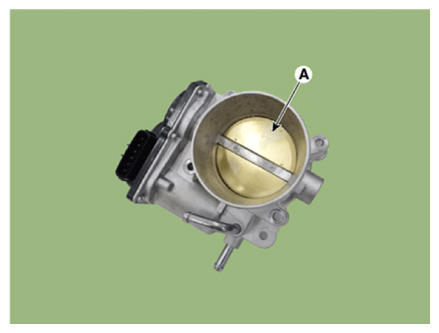

- Keep the ETC module plate (A) open.

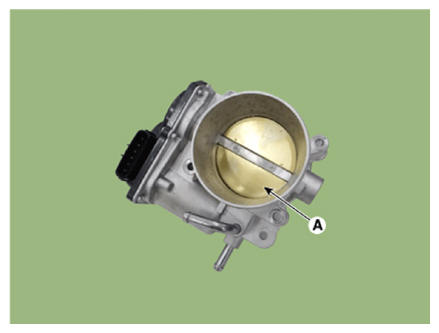

- lean the pollutant in the throttle body with a soft cloth moistened with cleaning fluid.NOTE:
- Do not spray cleaning fluid directly onto ETC. Use a lint free cloth moistened with cleaning fluid.
- Be careful not to clean the coating fluid around the shaft. If coating fluid is removed, idling control failure might occur by foreign substance inflow or excessive air leakage.
- After cleaning, re-install the ETC module and then perform the ETC module learning procedure.
(Refer to Engine Control System - "Adjustment ")
