2021 Kia Telluride EX, FWDFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Lift the vehicle.

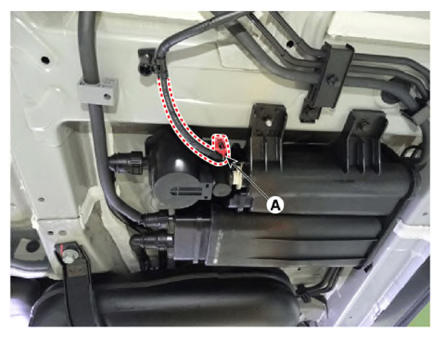

- Disconnect the canister close valve connector (A).

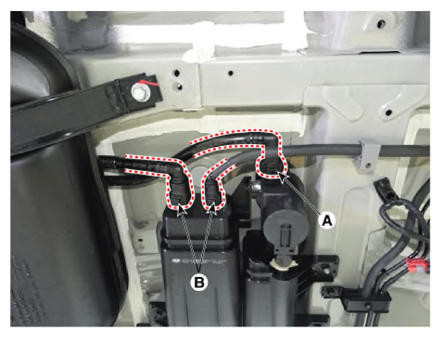

- Disconnect the ventilation tube quick-connector (A).
- Disconnect the vapor tube quick-connector (B).

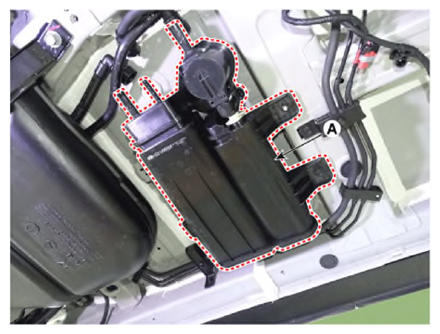

- Remove installation bolts & nut and then remove the canister assembly (A).

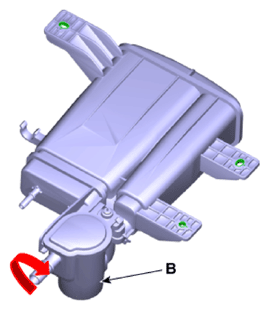

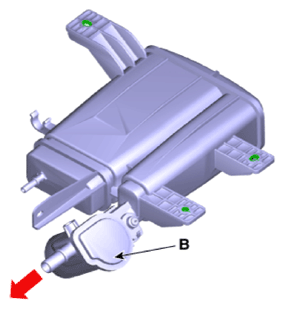

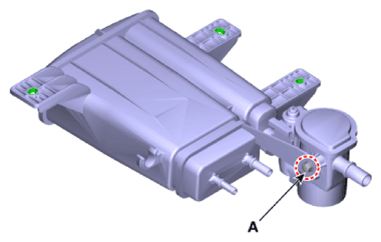

- Remove the mounting bolt (A) and then separate the fuel tank air filter & canister close valve (B) from the canister after rotating it in the direction of the arrow in the figure.

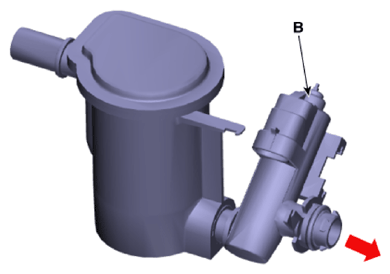

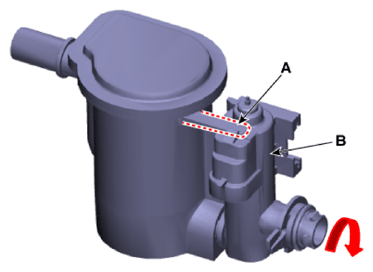

- Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
