2021 Kia Telluride EX, 4WDFACTORY OEM SERVICE PROCEDURE

Compensation Requirement and Procedure

Simultaneous replacement of AWD ECU (Controller) and coupling
- Does not require compensation.
Replacement of coupling only

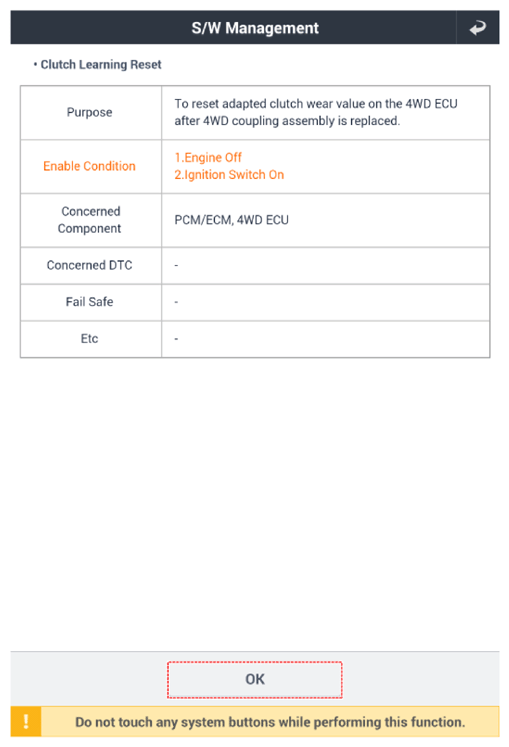

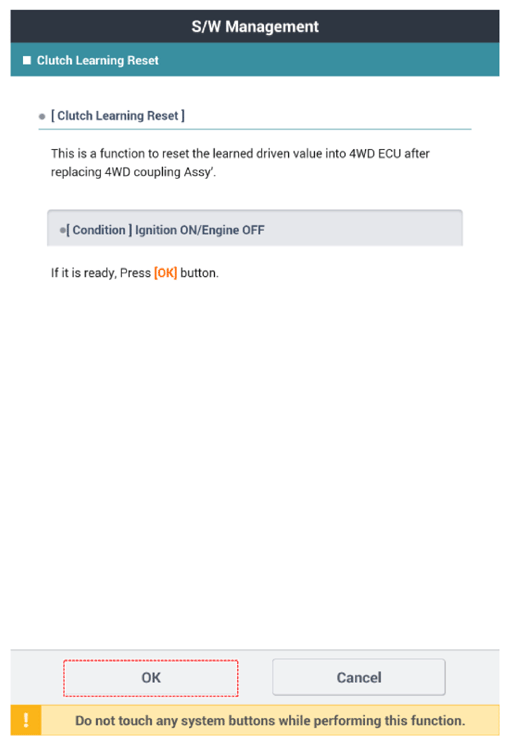

- Reset the AWD ECU's (Controller) clutch learning.
Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Replacement of AWD ECU (Controller) only

Before replacement: Check the ECU's clutch learning.

G13310529

Courtesy of KIA MOTORS AMERICA, INC.

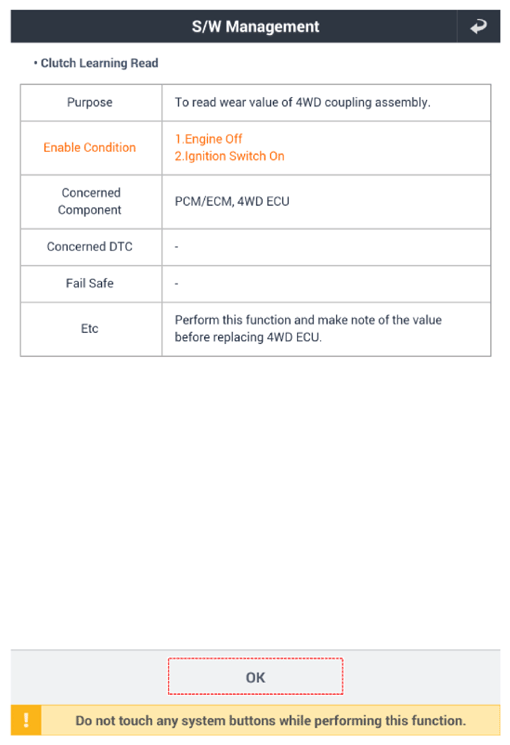

G13310530

Courtesy of KIA MOTORS AMERICA, INC.

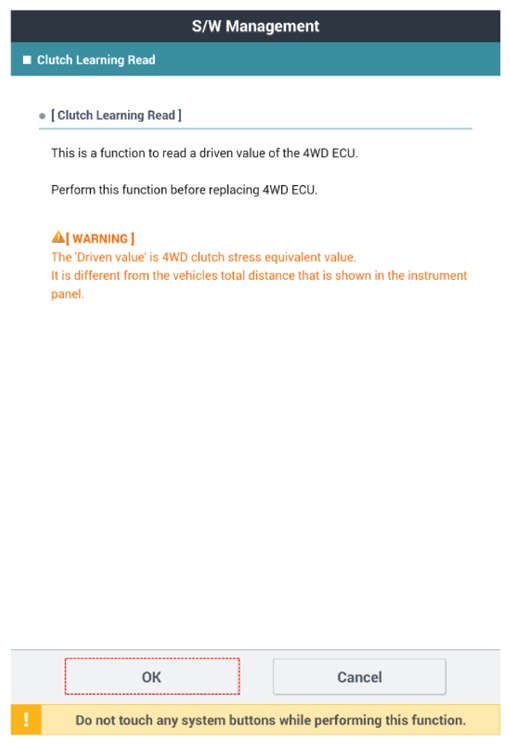

G13310531

Courtesy of KIA MOTORS AMERICA, INC.

After replacement: Enter the original ECU's clutch learning into the replacement ECU.

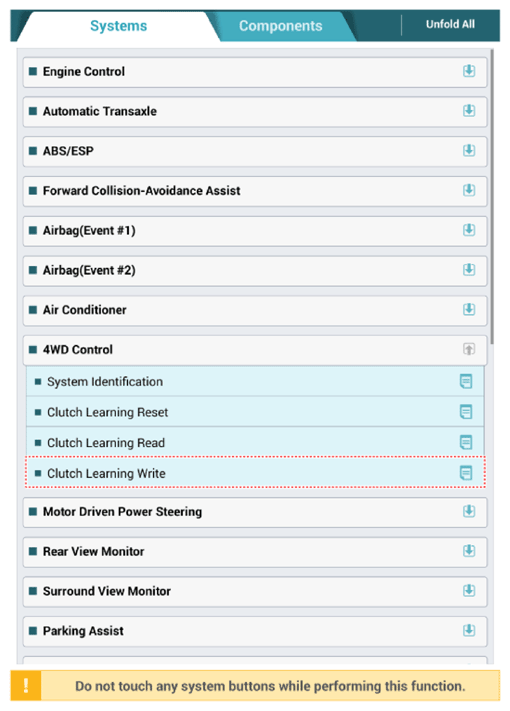

G13310532

Courtesy of KIA MOTORS AMERICA, INC.

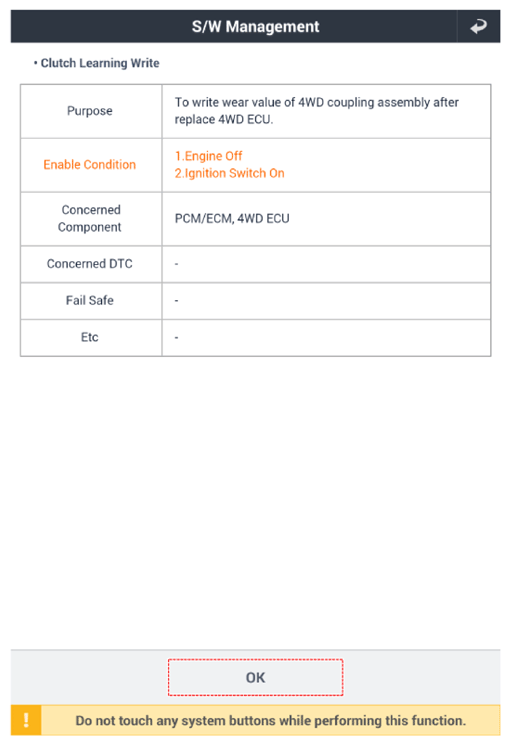

G13310533

Courtesy of KIA MOTORS AMERICA, INC.

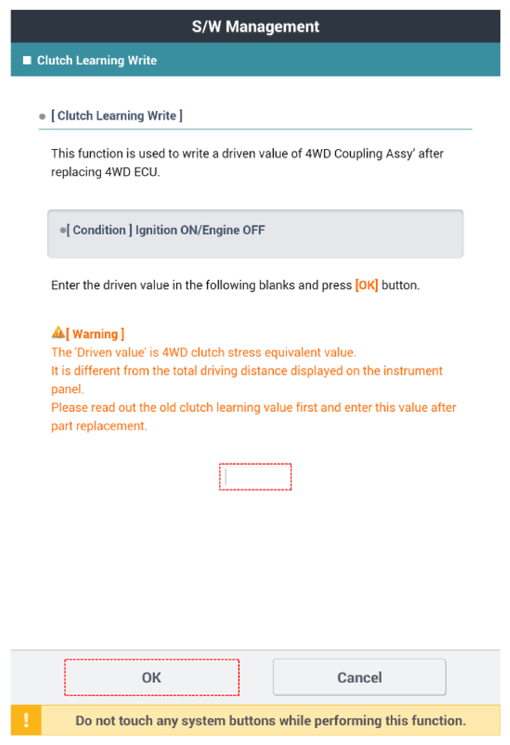

G13310534

Courtesy of KIA MOTORS AMERICA, INC.
