2021 Kia Stinger GT2, AWDFACTORY OEM SERVICE PROCEDURE
Repair procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the water center pipe.
(Refer to Engine Mechanical System - "WATER TEMPERATURE CONTROL ASSEMBLY ")

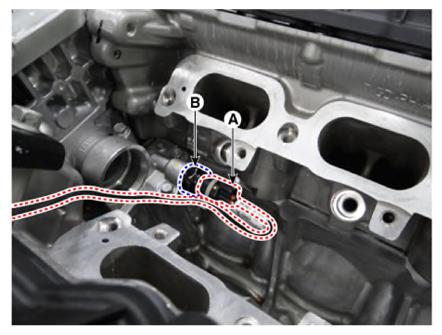

- Disconnect the connector (A), and then remove the CVVT oil pressure sensor (B).
