2021 Kia Stinger GT-Line, AWDFACTORY OEM SERVICE PROCEDURE
Driver Power Window Switch
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Be careful to store and handle the trim when removing/installing because lubricant and oil can leave a stain on the trim.
- Disconnect the negative (-) battery terminal.
- Remove the driver front door trim.
(Refer to Body - "FRONT DOOR TRIM ")

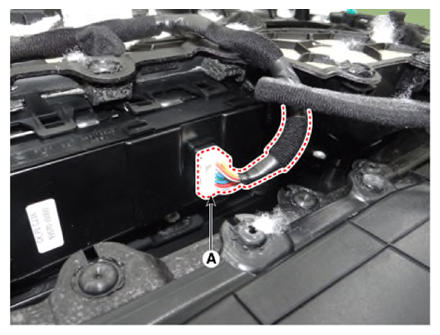

- Disconnect the power window switch connector (A).

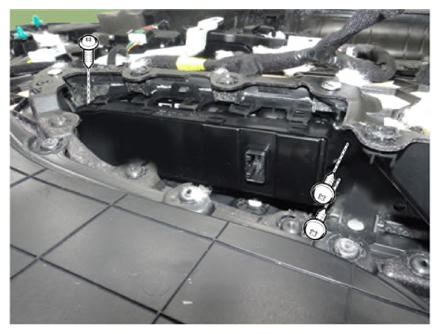

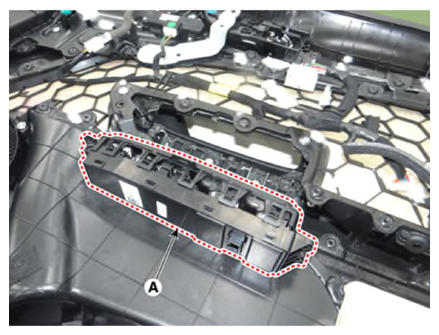

- Remove the power window switch (A) after loosening the mounting screws.
