2021 Kia Soul X LineFACTORY OEM SERVICE PROCEDURE
Removal And Installation
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.

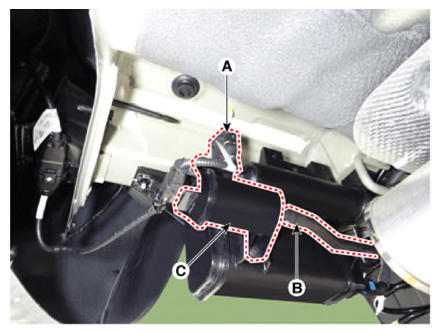

- Disconnect the canister close valve extension connector (A).
- Disconnect the ventilation hose (A).
- Remove installation clip (B) and then remove the fuel tank air filter & canister close valve.

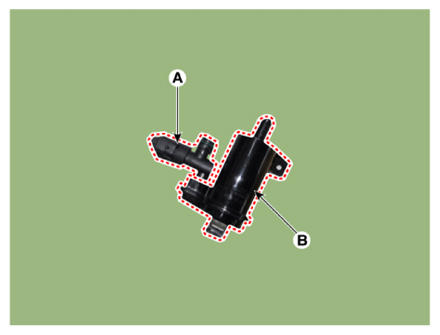

- Separate the canister close valve (A) from the fueltank air filter (B).
- Install in the reverse order of removal.
