2021 Kia Soul X LineFACTORY OEM SERVICE PROCEDURE

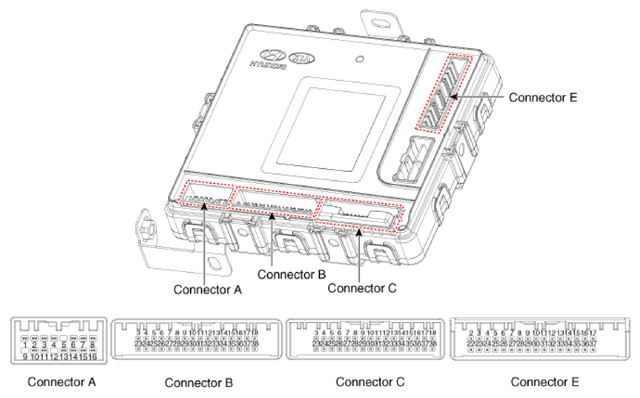

Connector And Terminal Function

G13282840Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
Connector A Connector B Connector C Connector E
1 - - - -
2 Rear washer switch (Input) - - ACC relay (Output)
3 Front washer switch (Input) PDW-R power (Output) AT solenoid (Output) Start relay (Output)
4 Power battery (+) - - IGN 1 relay (Output)
5 - Sunroof status (Input) - -
6 Power ground Light switch (Input) KLINE immobilizer SSB switch 2 (Input)
7 - Rear wiper switch (Input) - SSB switch 1 (Input)
8 - Front wiper volume switch (Input) Front wiper low back up switch (Input) Assist outside handle antenna (+) (Output)
9 - - AT: 'P' position (Input)
MT: Clutch ignition lock switch (Input)		 -
10 - Front fog lamp switch Wiper parking switch (Input) Interior antenna 2 power (Output)
11 ECU battery Front wiper switch (Input) Brake switch (Input) Driver outside handle antenna (+) (Output)
12 - Headlamp high switch (Input) - Bumper antenna power (Output)
13 - ACC (Input) - Trunk interior antenna (+) (Output)
14 ECU ground IGN 2 (Input) Assist seat belt indicator (Output) -
15 - - LIN 1 (PDW) -
16 - PDW-R power (Input) Front wiper low relay (Output) -
17   - Front wiper high relay (Output) Wheel speed sensor (Input)
18 Rear center seat belt indicator
(Output)		 PDW-F power (Output) -
19 - - -
20 - - -
21 - - -
22 - External buzzer (Output) IGN 2 relay (Output)
23 - PDWoption (Input) -
24 IGN 1 (Input) Multifunction Switch ground (Input) ESCL enable (Output)
25 Front heated nozzle (Output) - Start feedback (Input)
26   - Immobilizer antenna power (Output) Driver outside handle switch (Input)
27 PDW-R switch (Input) Immobilizer antenna ground (Output) Assist outside handle switch (Input)
28 Rear right seat belt indicator (Output) Outside mirror unfolding (Output) Assist outside handle antenna (-) (Output)
29 Rear left seat belt indicator (Output) Outside mirror folding (Output) -
30 PDW-R switch indicator (Output) - Interior antenna 2 ground (Output)
31 Auto light sensor ground (Output) - Driver outside handle antenna (-) (Output)
32 Auto light sensor signal (Input) - Bumper antenna ground (Output)
33 Auto light sensor power (Output) - Trunk interior antenna (-) (Output)
34 LIN 3 (Rain sensor) Rear wiper relay (Output) SSB symbol illumination (+) (Output)
35 B-CAN (Low) P-CAN (High) -
36 B-CAN (High) P-CAN (Low) LF searching on (Output)
37 -   RPM (Input)
38 - -
39 - -
40 - -
