2021 Kia Soul X LineFACTORY OEM SERVICE PROCEDURE

Neutralization Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization mode".

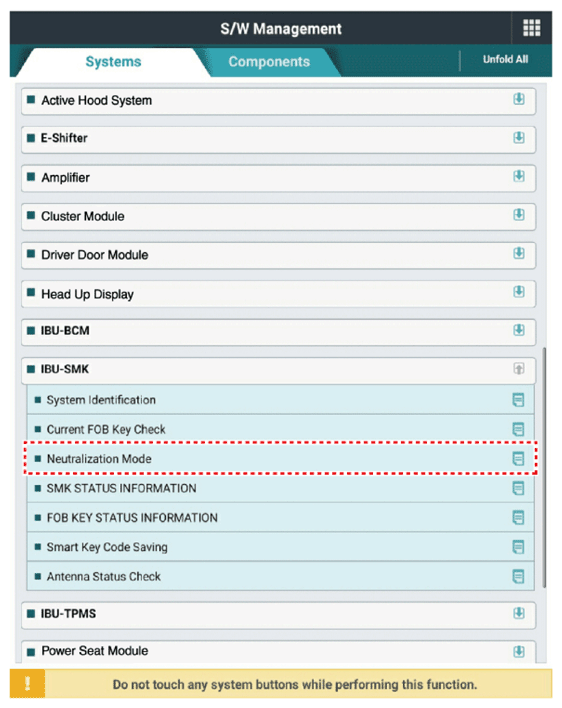

    G13282870Courtesy of KIA MOTORS AMERICA, INC.

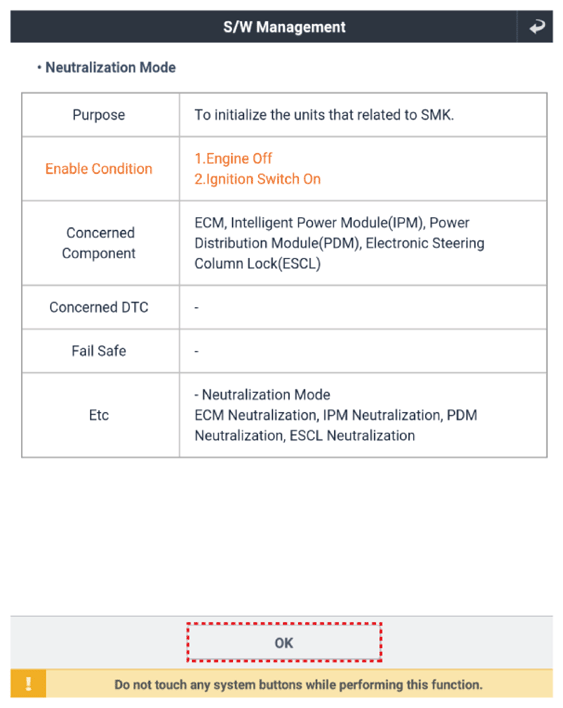

    G13282871Courtesy of KIA MOTORS AMERICA, INC.

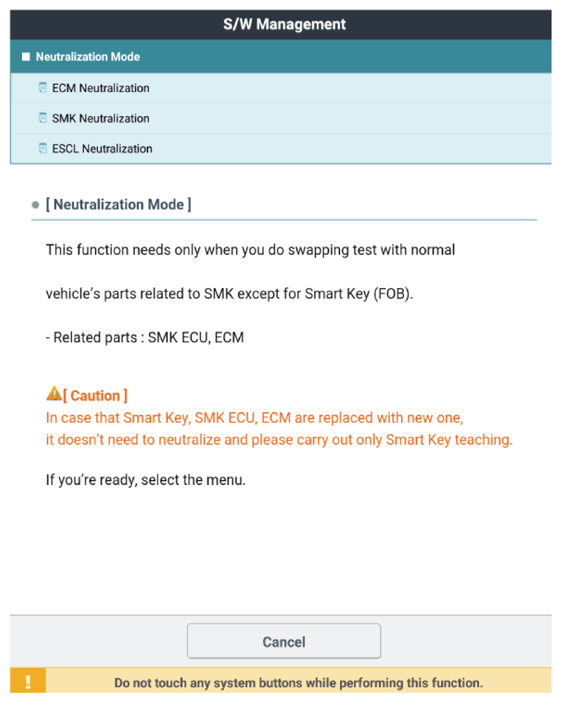

    G13282872Courtesy of KIA MOTORS AMERICA, INC.

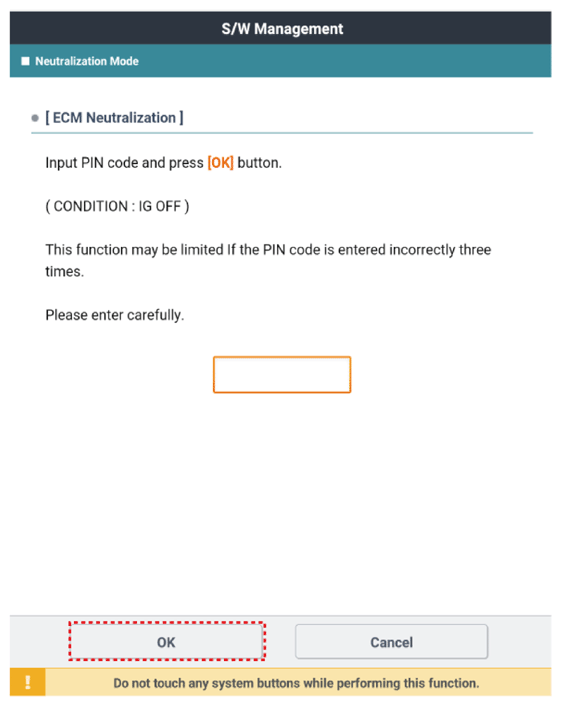

    G13282873Courtesy of KIA MOTORS AMERICA, INC.
    G13282874Courtesy of KIA MOTORS AMERICA, INC.

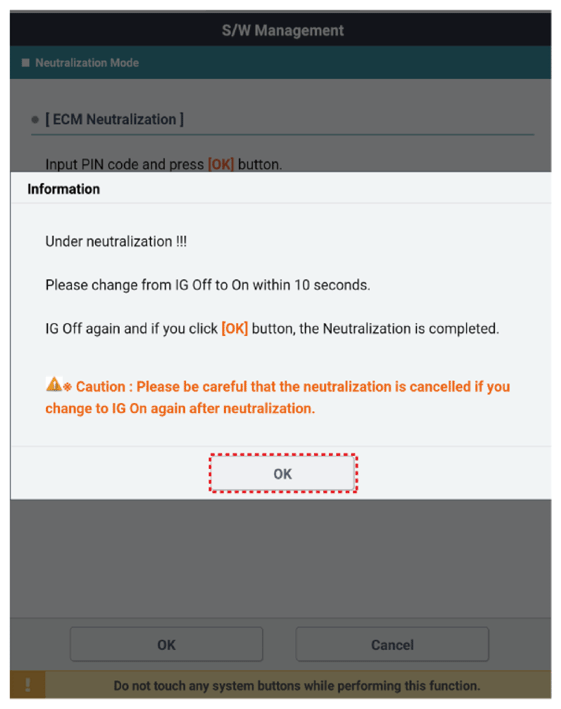

    G13282875Courtesy of KIA MOTORS AMERICA, INC.

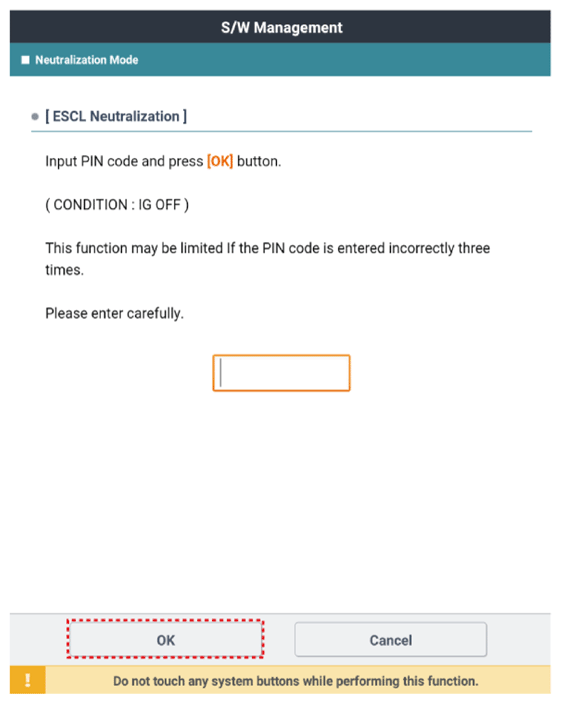

    G13282876Courtesy of KIA MOTORS AMERICA, INC.

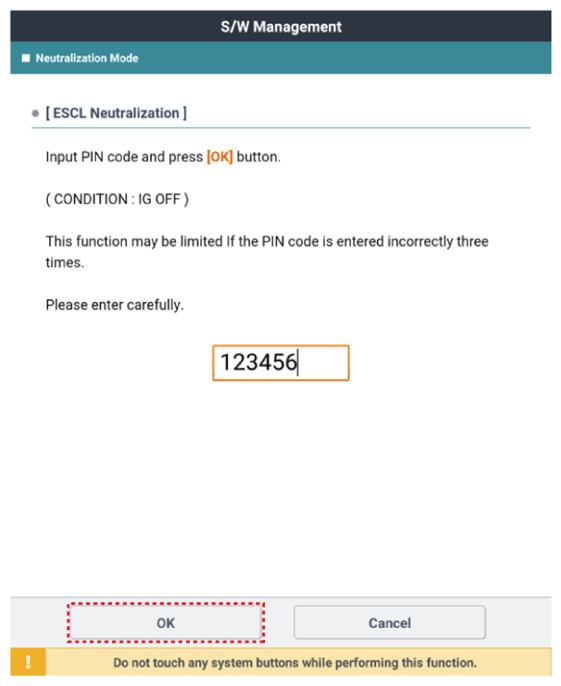

    G13282877Courtesy of KIA MOTORS AMERICA, INC.

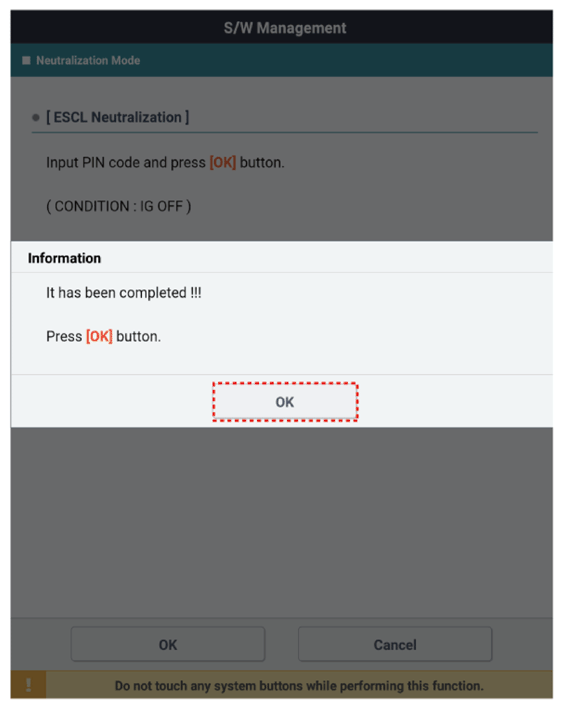

    G13282878Courtesy of KIA MOTORS AMERICA, INC.

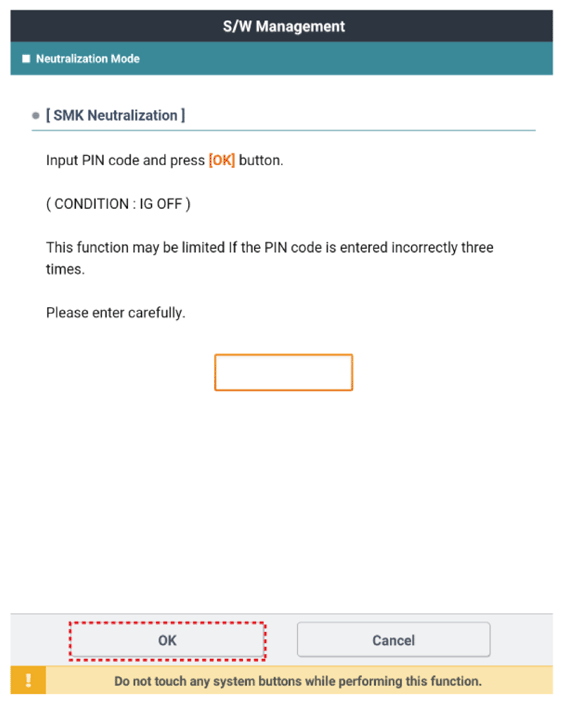

    G13282879Courtesy of KIA MOTORS AMERICA, INC.

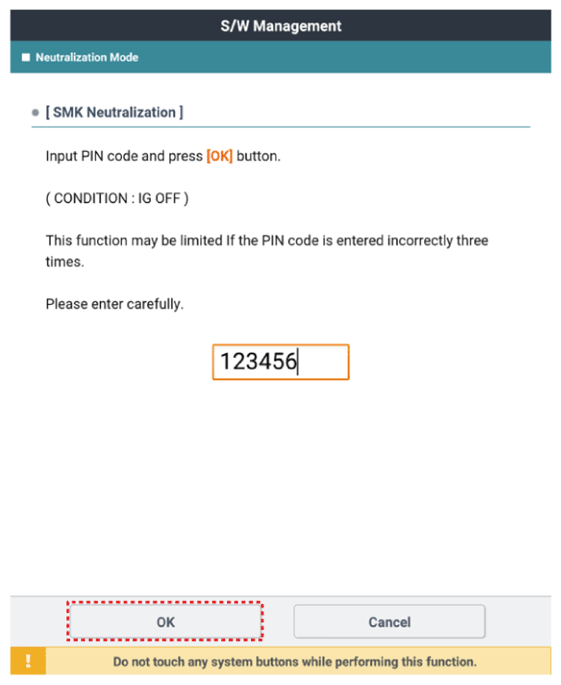

    G13282880Courtesy of KIA MOTORS AMERICA, INC.

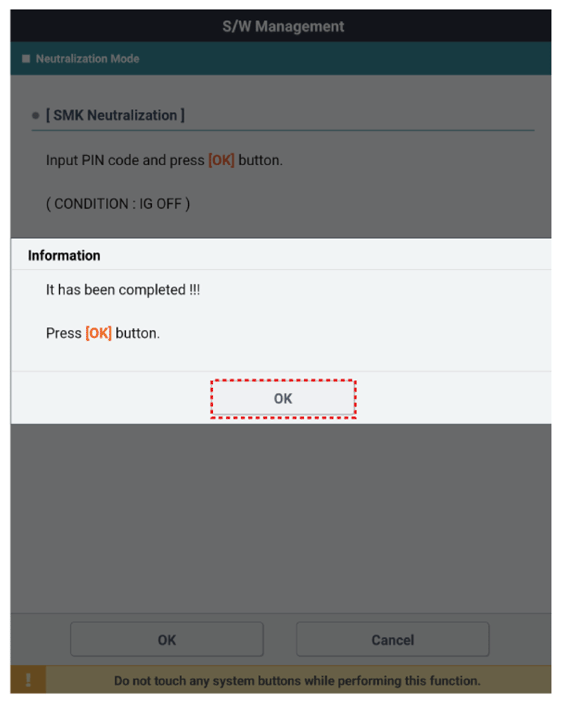

    G13282881Courtesy of KIA MOTORS AMERICA, INC.
