2021 Kia Soul EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Disassembly

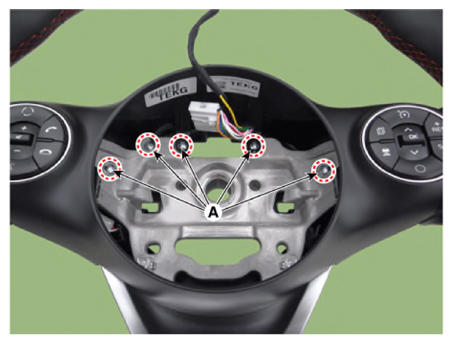

- Loosen the screws (A).

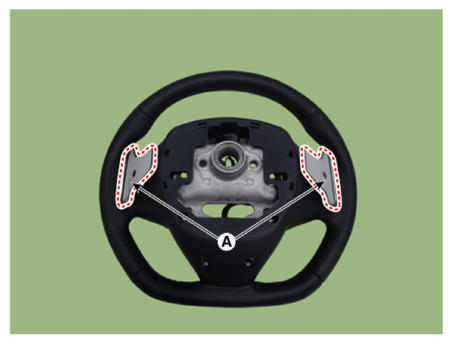

- Disconnect the paddle shifters (A).

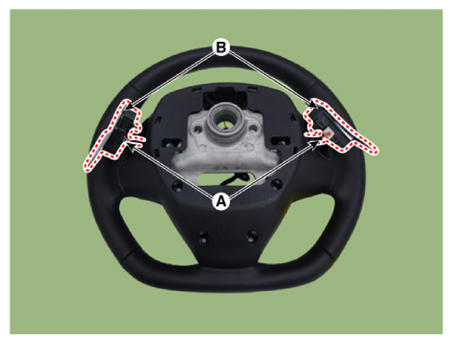

- Disconnect the connectors (A) and then remove the paddle shifters (B).

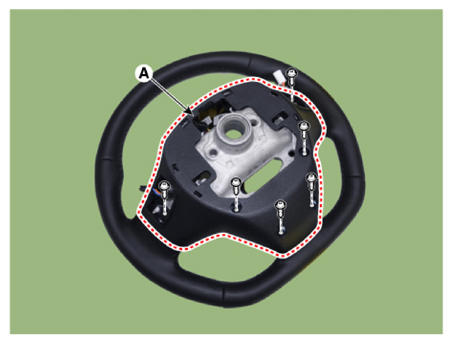

- Remove the lower cover (A) by loosening the screws.
- Remove the steering wheel wiring.

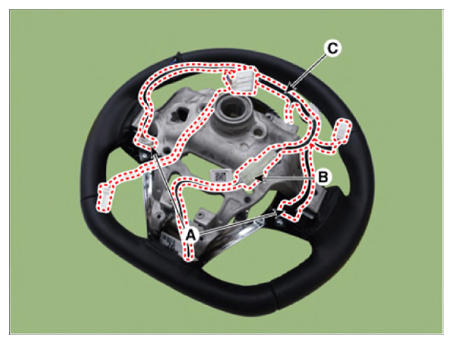

- Disconnect the remote control switch connectors (A).
- Disconnect the heated steering wheel connector (B).
- Remove the steering wheel wiring (C).

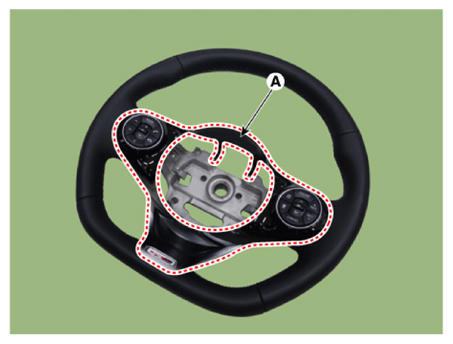

- Remove the remote control switch assembly (A).

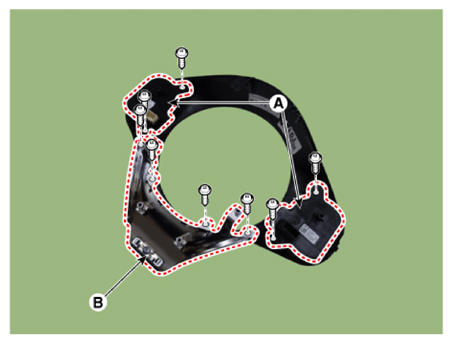

- Remove the remote control switch (A) and bezel (B).
- Assemble in the reverse order of disassembly.
