2021 Kia Soul EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Do not reuse the used injector fixing clip.
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.

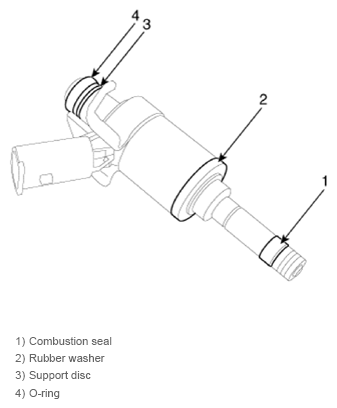

- Apply engine oil to the injector O-ring.
- Do not reuse the used injector O-ring.
- Do not reuse the used high pressure fuel pipe.
- Do not reuse the used bolt.
- When inserting the injector, be careful not to damage the injector tip.
