Repair Procedures: Adjustment

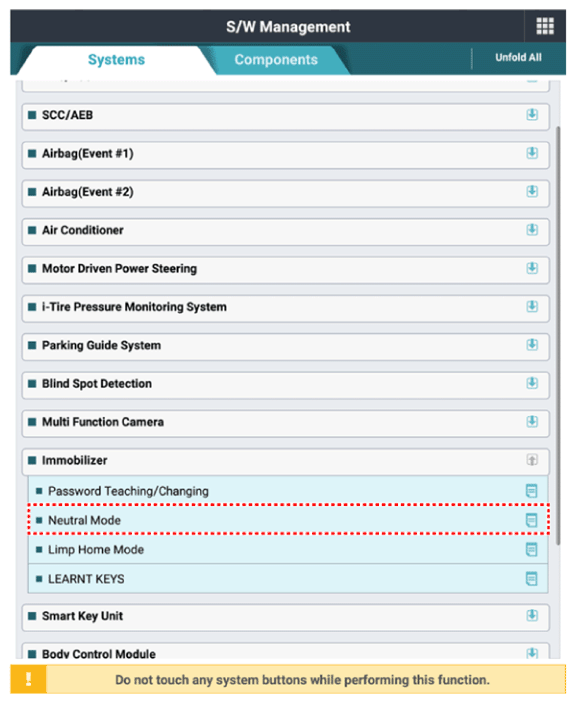

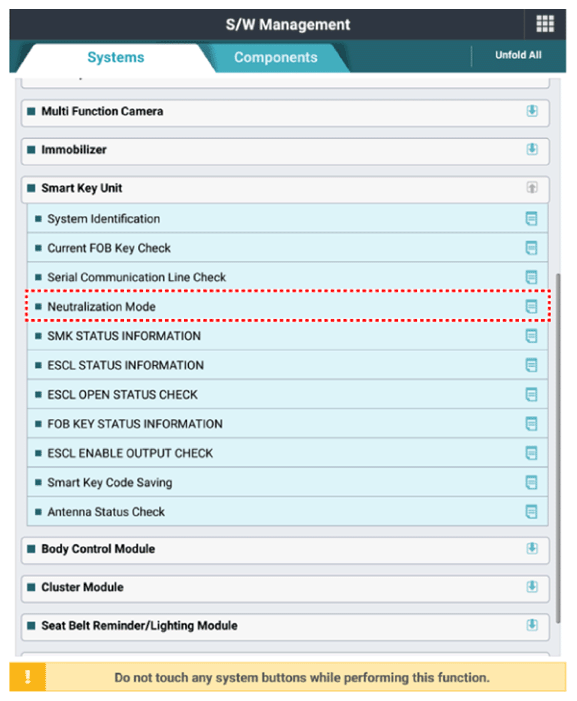

- Perform the neutral mode using the KDS when replacing with a reused ECM.
[Non-Smart Key]
[Smart Key]

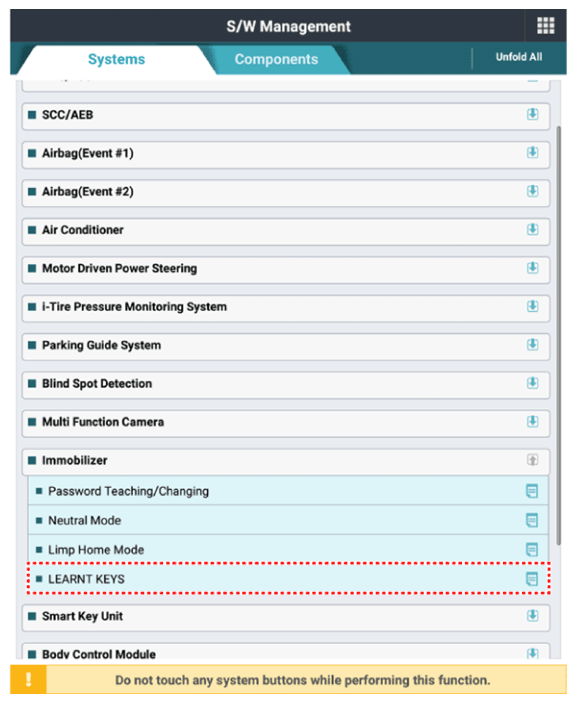

- Perform the
"Key Teaching" procedure by using the KDS.
[Non-Smart Key]
[Smart Key]
Turn IGN ON then OFF using the smart key or start button. Then the ECM learns information on the smart key automatically.

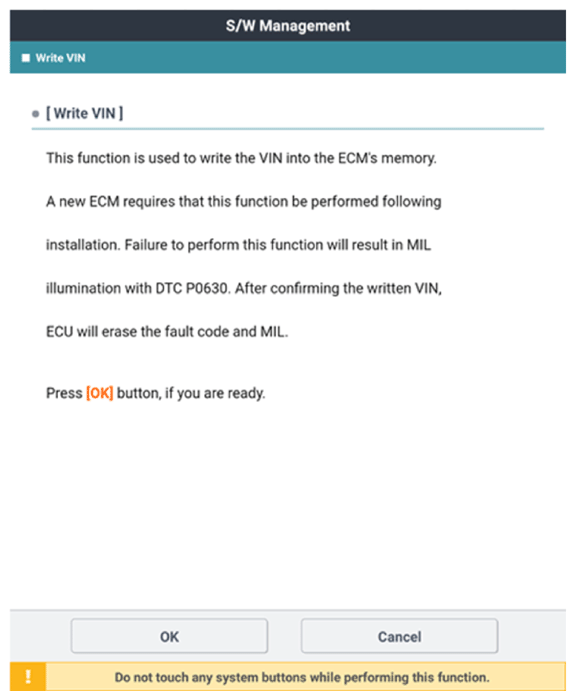

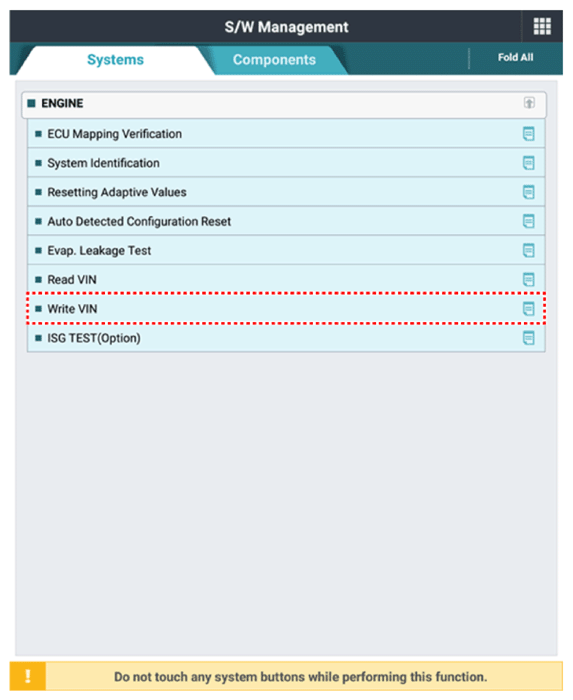

- Perform the VIN writing procedure by using the KDS.
- Perform ETC module learning procedure
(Refer to Electronic Throttle Control System - "ADJUSTMENT ")
