Repair Procedures: Cleaning
- Remove the ETC.
(Refer to ETC - "REMOVAL ")

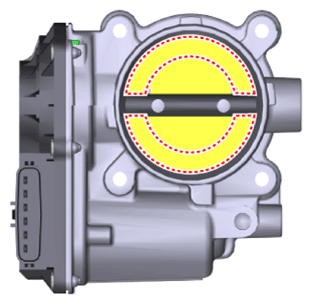

NOTE: Cleaning the ETC after removing it. - Clean the pollutant in the throttle body using a soft cloth moistened with cleaning fluid.NOTE:
- Take care not to getting into foreign matter for ETC.
- Do not spray cleaning fluid to ETC directly and use a lint free cloth moistened by cleaning fluid.
- Be careful as fingers or cloth may get caught in the valve.
- Be careful not to clean the coating fluid around the shaft. If coating fluid is removed, idling control failure might occur by foreign matter inflow or excessive air leakage.
- Install the ETC.
(Refer to ETC - "INSTALLATION ")

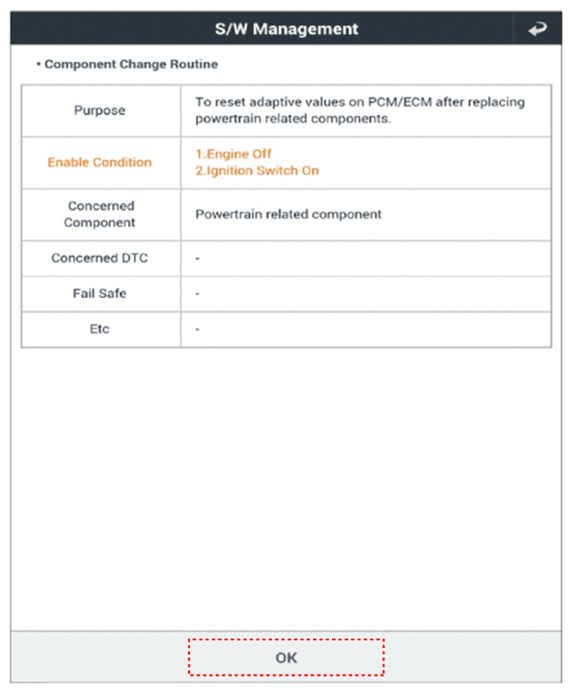

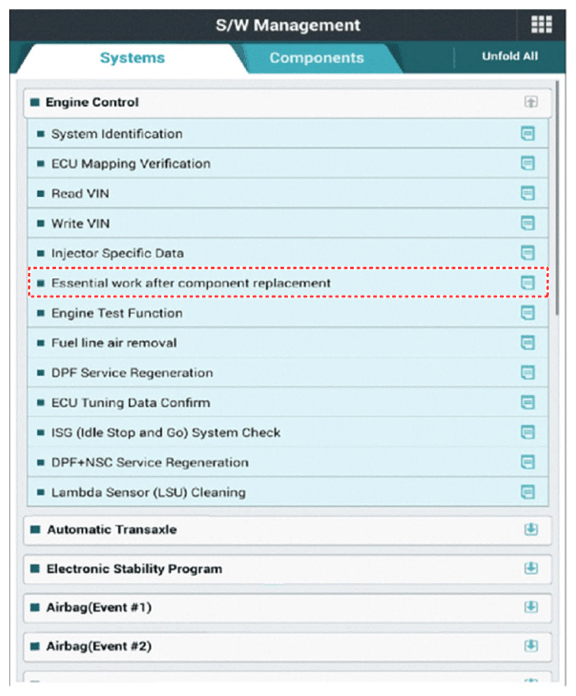

- Reset the ETC adaptive value.
- Perform the ETC learning procedure.
(Refer to ETC - "ADJUSTMENT ")
