2021 Kia Seltos EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Installation

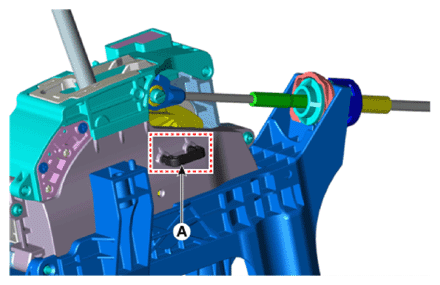

  1. Insert "N range fixing pin" (A) of shift lever after checking the shift lever and manual control lever are on "N" range.
    G13483233Courtesy of KIA MOTORS AMERICA, INC.

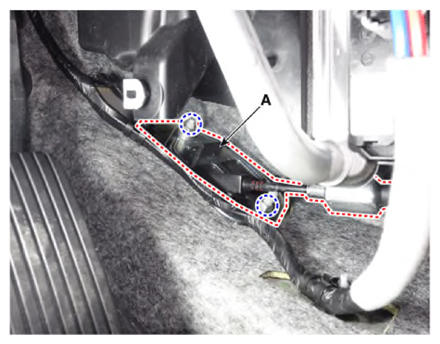

  2. Install the shift cable retainer (A) by tightening nuts.

    Tightening torque  :

    11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)

    G13483234Courtesy of KIA MOTORS AMERICA, INC.

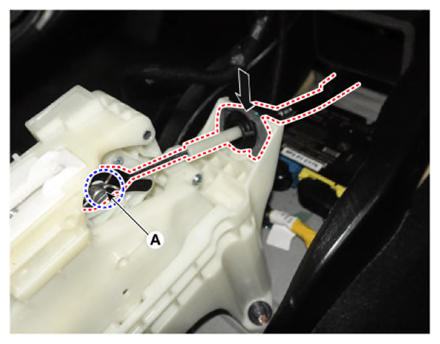

  3. Insert the snap pin (A) after installing the shift cable.
    G13483235Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

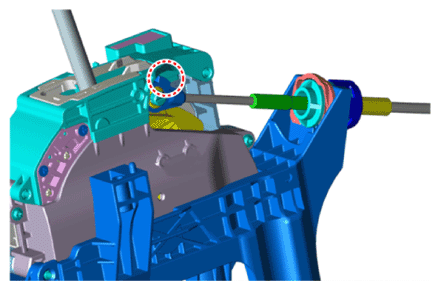

    • Install the shift cable after checking the direction of projection to prevent incorrect assembly.
      G13483236Courtesy of KIA MOTORS AMERICA, INC.

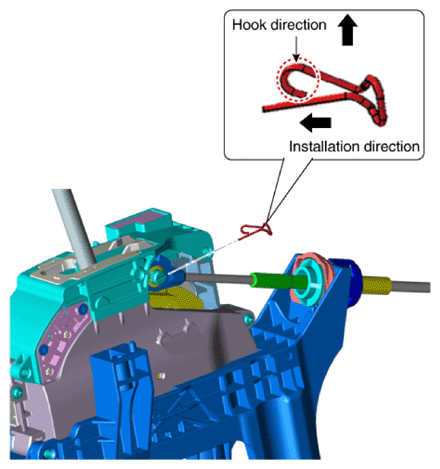

    • Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
      G13483237Courtesy of KIA MOTORS AMERICA, INC.

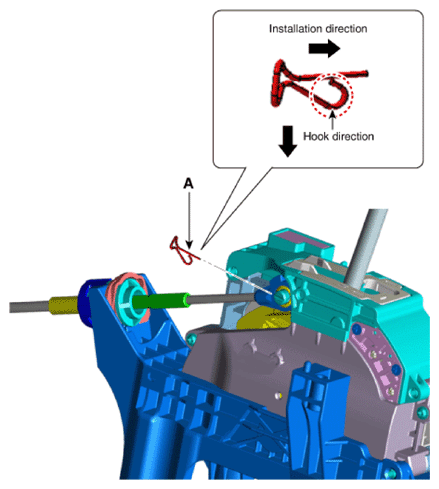

  4. Install the shift cable to the lever pin and then insert the snap pin (A).
    G13483238Courtesy of KIA MOTORS AMERICA, INC.

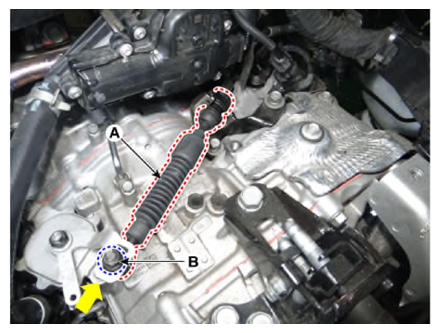

  5. Tighten the nut (B) to the specified torque after removing free play by pushing the shift cable (A) in the direction of the arrow.

    Tightening torque  :

    9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb.ft)

    G13483239Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: The existing shift cable clip must be replaced with new one. (Do not reuse it.)
    G13483240Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the N range fixing pin (A).
    G13483241Courtesy of KIA MOTORS AMERICA, INC.
  7. Install the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  8. Install the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  9. Install the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")
