2021 Kia Seltos EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Disassembly

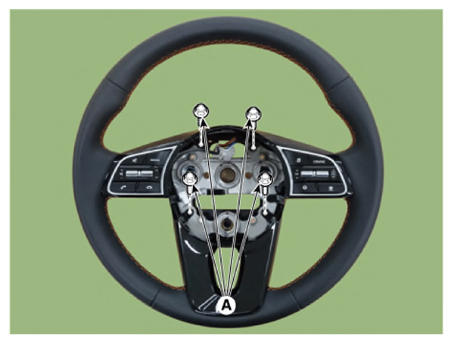

Loosen the screws (A).

Courtesy of KIA MOTORS AMERICA, INC.

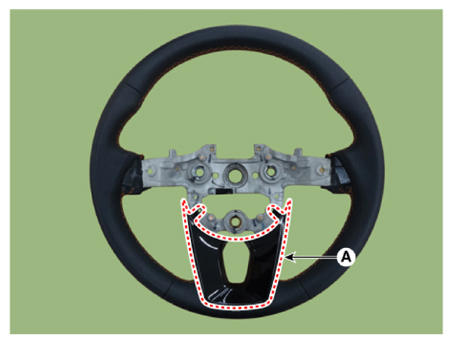

Loosen the mounting screws, remove the lower cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

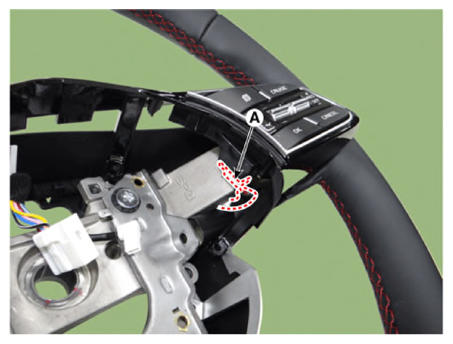

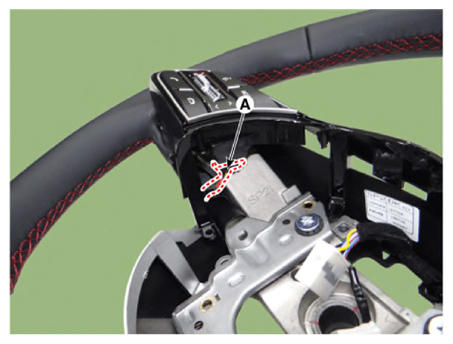

Disconnect the remote control switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

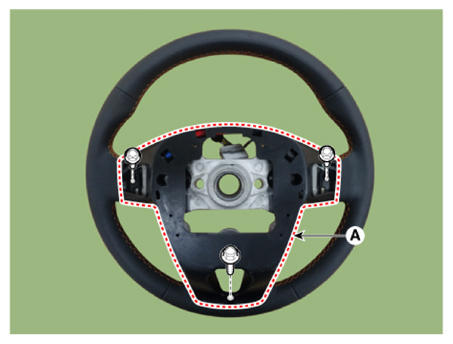

Remove the bezel (A).

Courtesy of KIA MOTORS AMERICA, INC.
Assemble in the reverse order of disassembly.
