Repair Procedures: Removal
- Disconnect the negative battery terminal.
- Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")

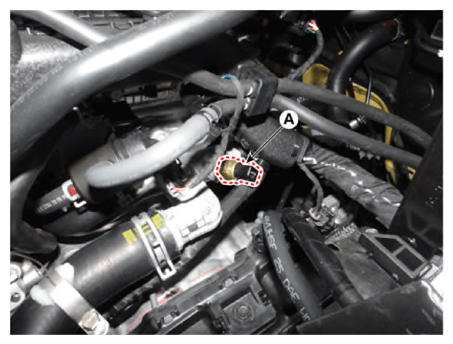

- Disconnect the engine coolant temperature sensor connector (A).

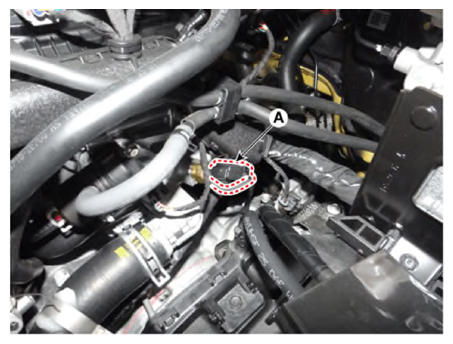

- Remove the engine coolant temperature sensor (A).
Tightening torque :
29.4 - 39.2 N.m (3.0 - 4.0 kgf.m, 21.7 - 28.9 lb.ft)
NOTE: Note that engine coolant may be flowed out from the engine coolant temperature control assembly when removing the sensor.
