2021 Kia Seltos EXFACTORY OEM SERVICE PROCEDURE
Smart Key Code Saving
- Connect the VCI II in driver side crash pad lower panel, turn the power on KDS.

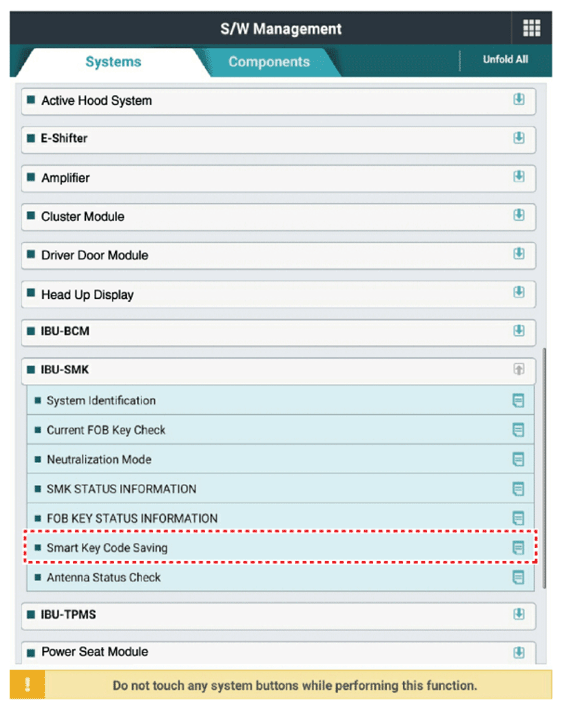

- Select the vehicle model and then do "Smart key code saving".

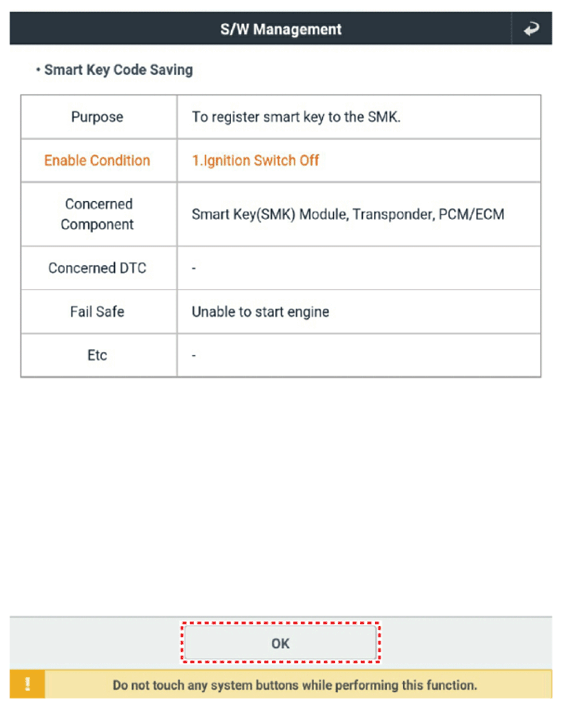

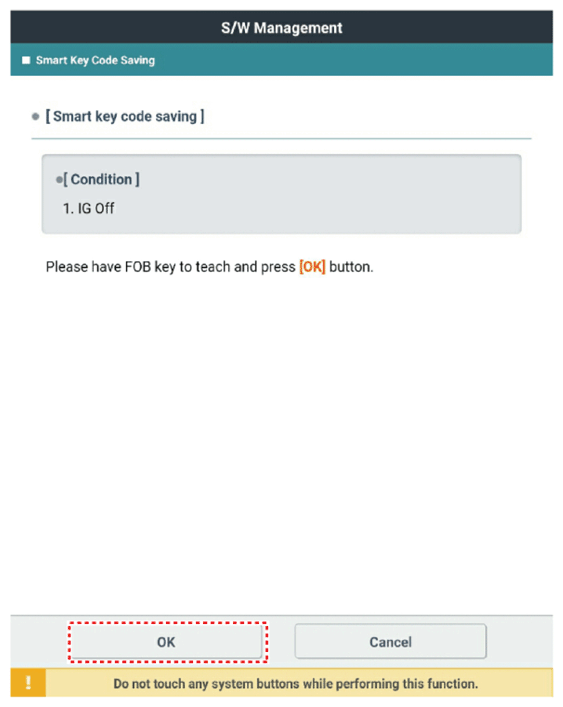

- After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
- After having the teaching smart key, push "ENTER" key.

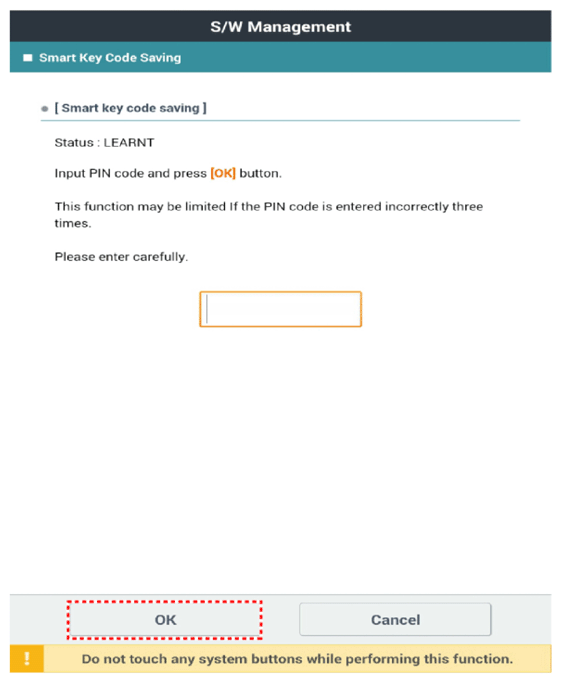

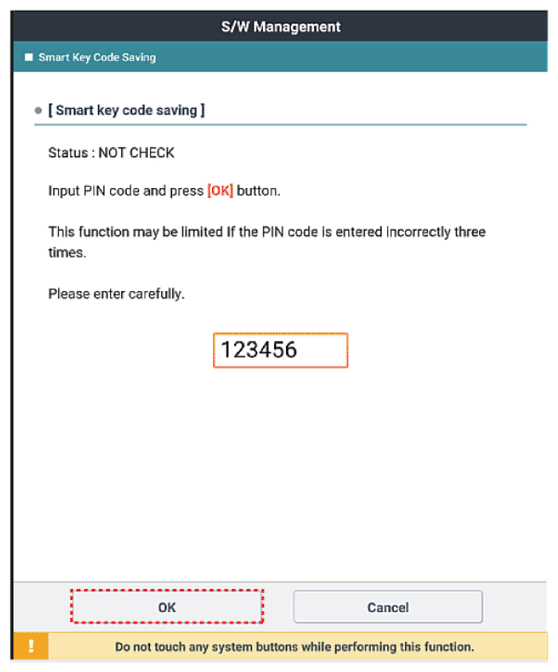

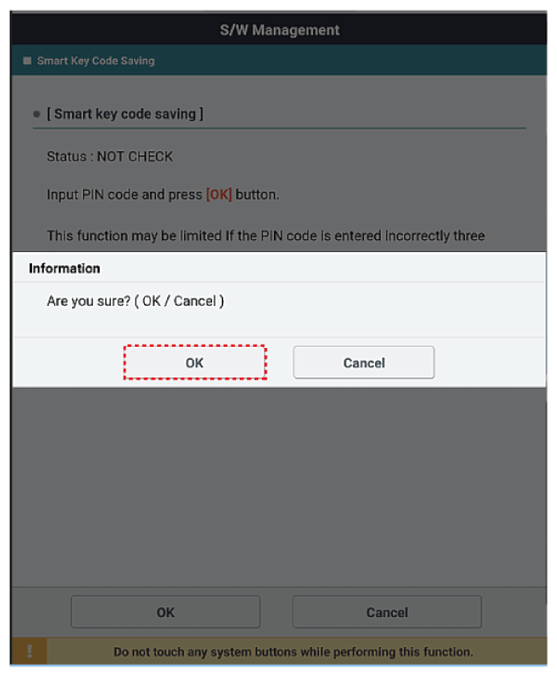

- Input the "Pin code" for first key teaching.

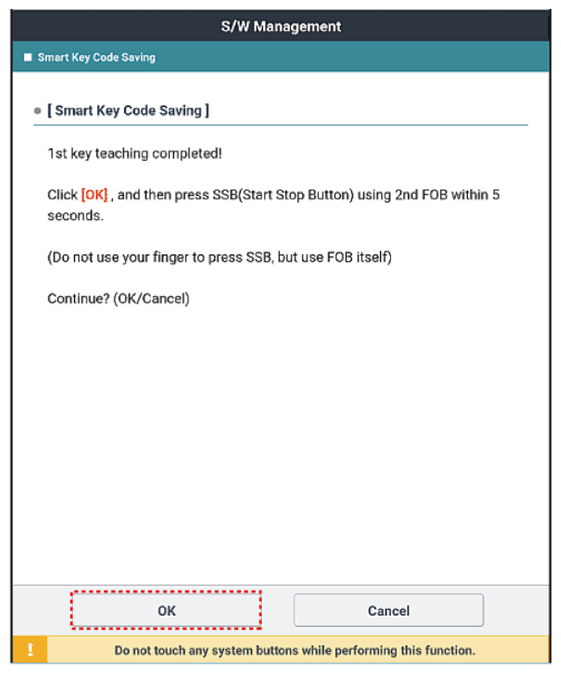

- Confirm the message "First key teaching completed".

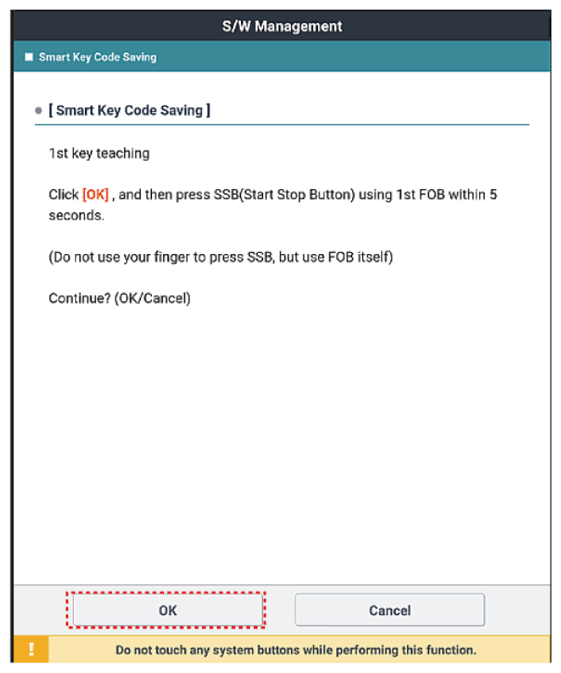

- Press the SSB with smart key within 5 seconds after pressing "OK".

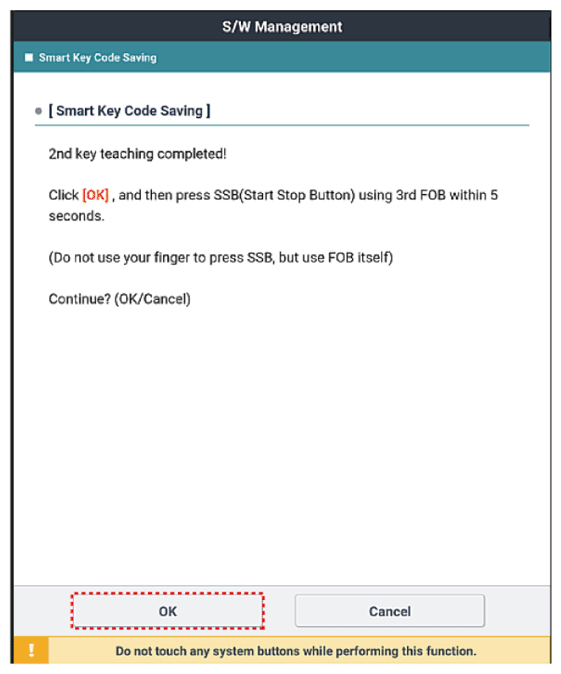

- Confirm the message "Second key teaching completed".

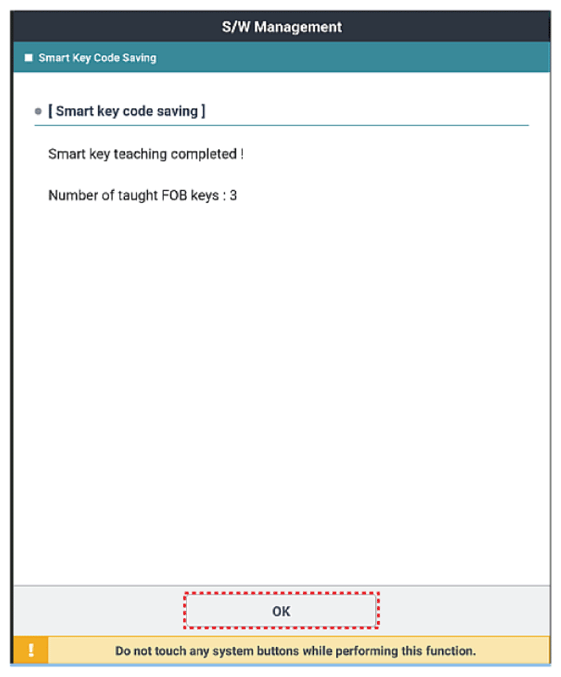

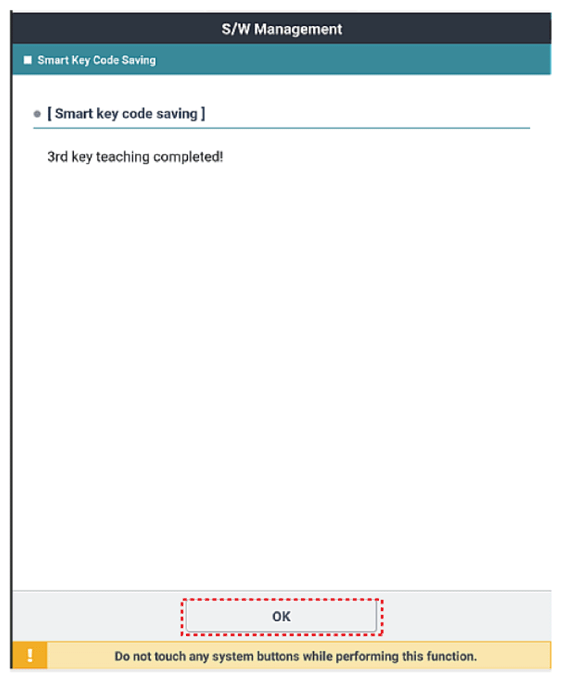

- Then the screen will be shown as below when key teaching process is completed.
