2021 Kia Seltos EXFACTORY OEM SERVICE PROCEDURE

Neutralization Status Check

  1. Connect the VCI dongle of the KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization mode".

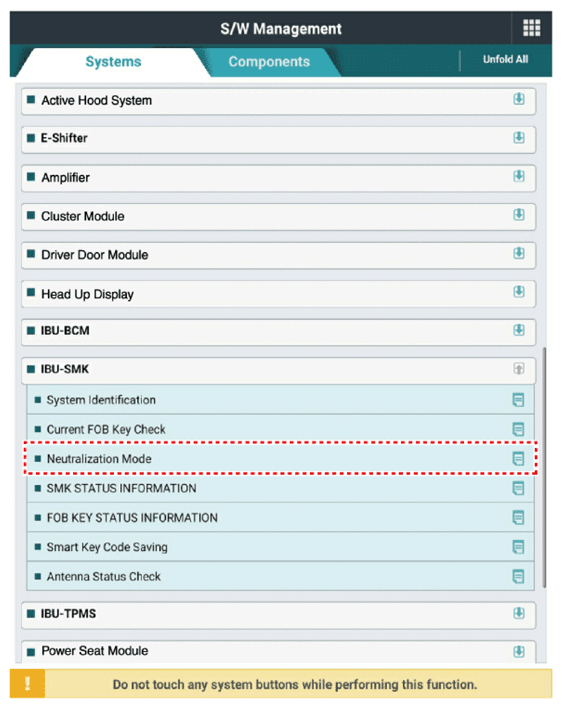

    G13482101Courtesy of KIA MOTORS AMERICA, INC.

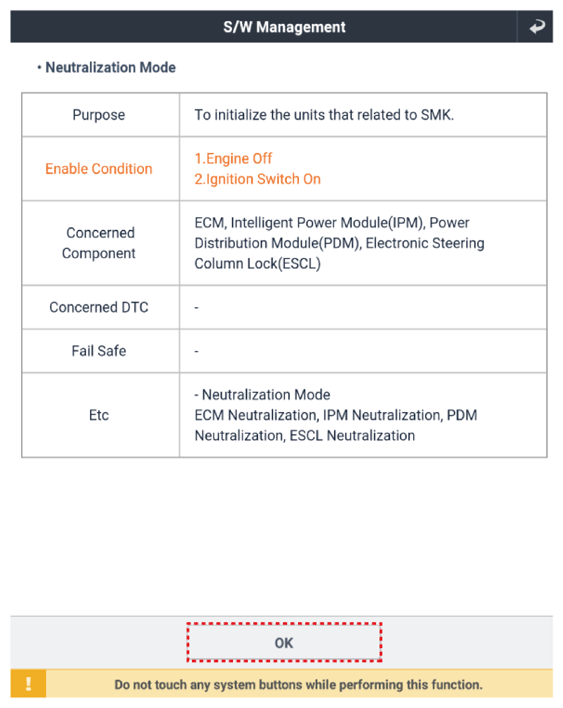

    G13482102Courtesy of KIA MOTORS AMERICA, INC.

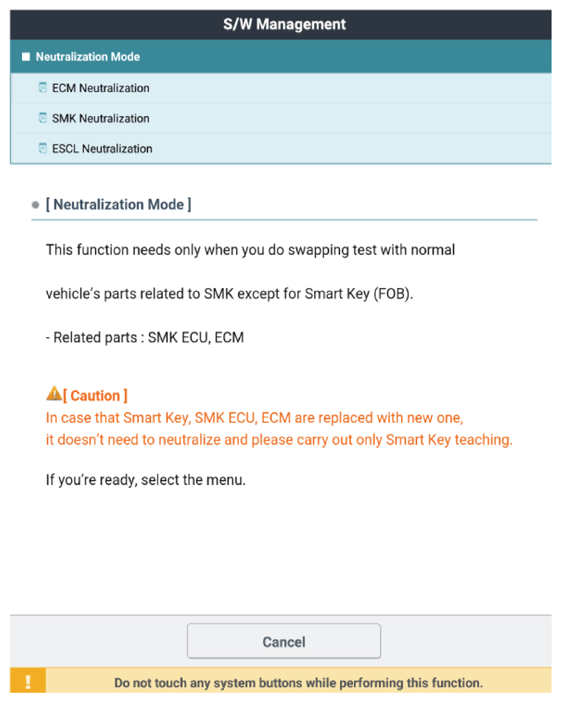

    G13482103Courtesy of KIA MOTORS AMERICA, INC.

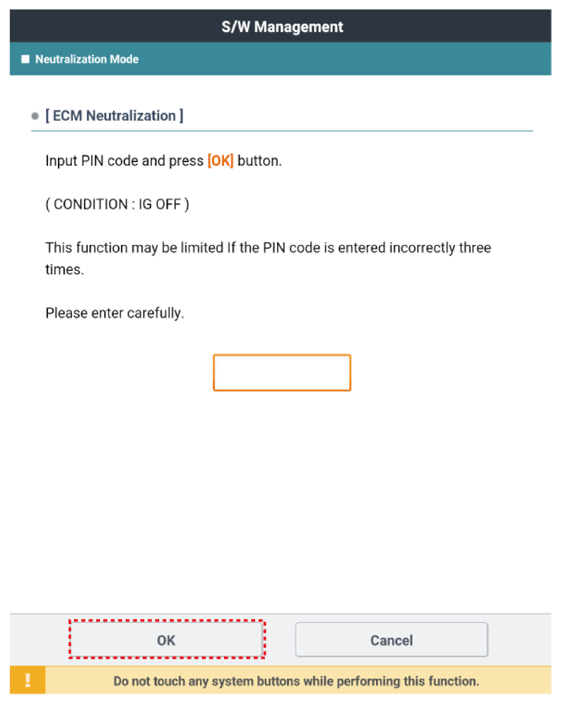

    G13482104Courtesy of KIA MOTORS AMERICA, INC.
    G13482105Courtesy of KIA MOTORS AMERICA, INC.

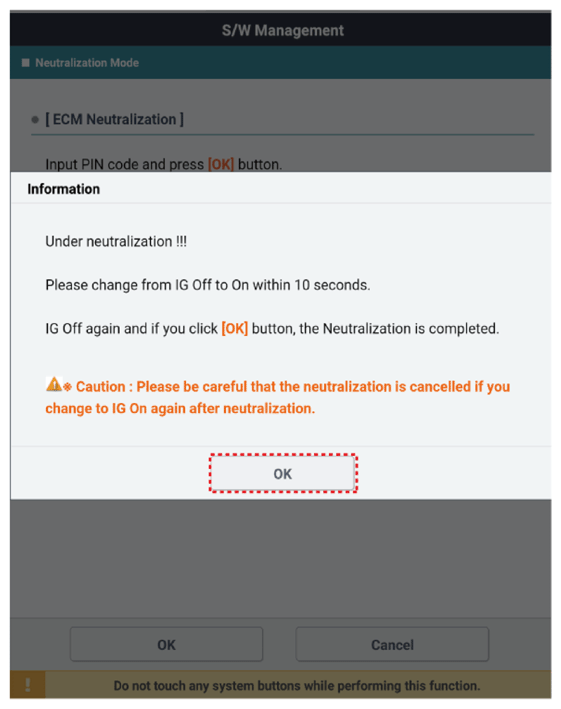

    G13482106Courtesy of KIA MOTORS AMERICA, INC.

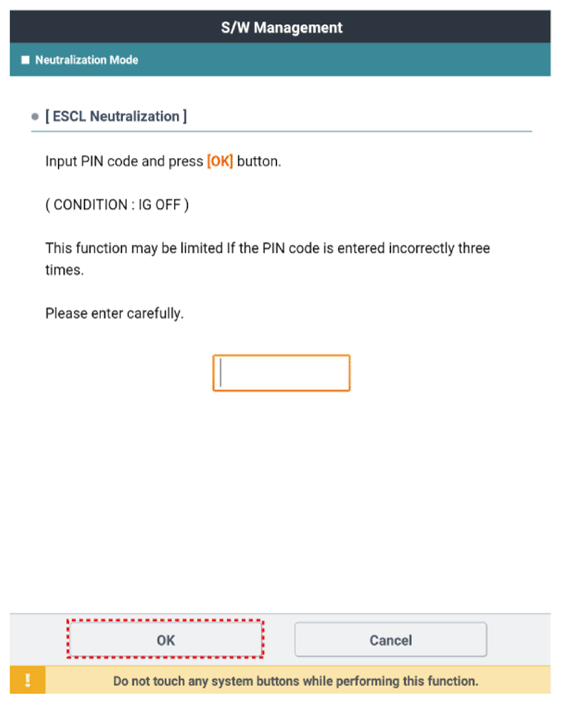

    G13482107Courtesy of KIA MOTORS AMERICA, INC.

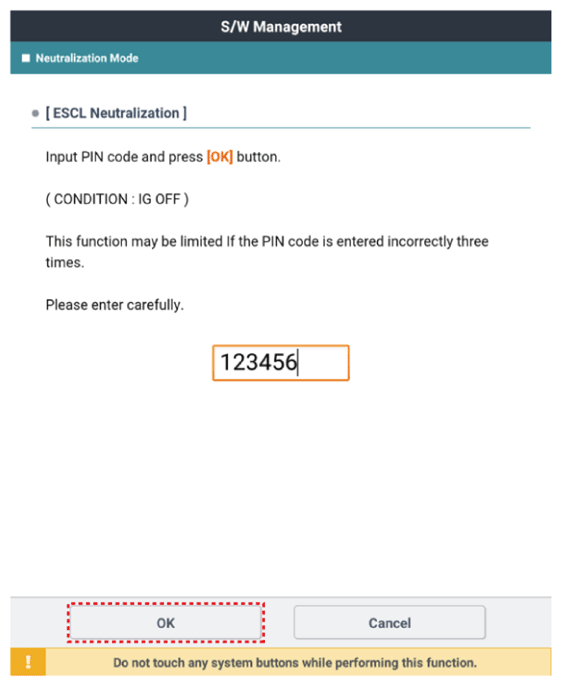

    G13482108Courtesy of KIA MOTORS AMERICA, INC.

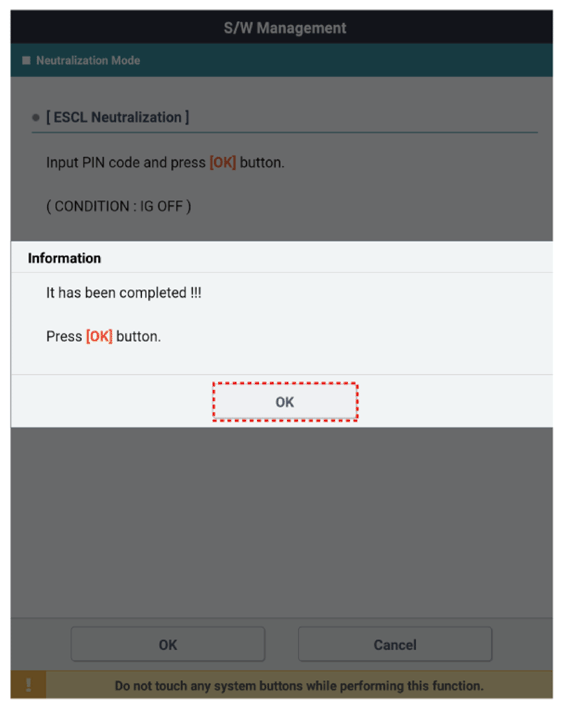

    G13482109Courtesy of KIA MOTORS AMERICA, INC.

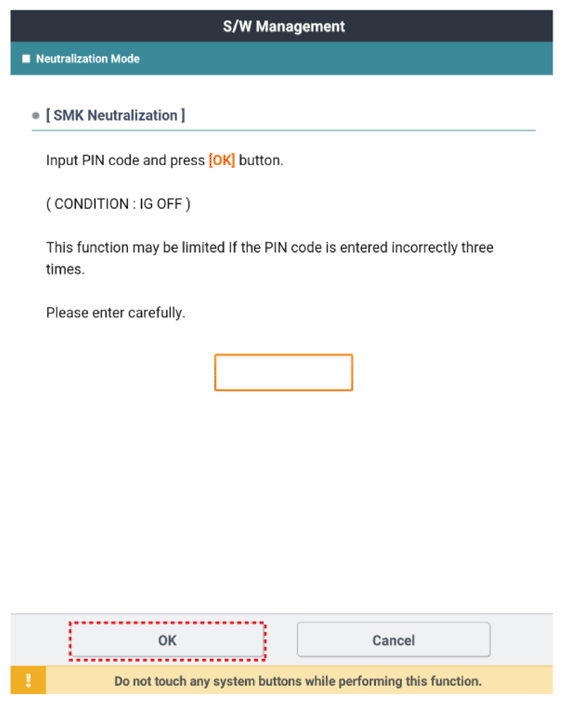

    G13482110Courtesy of KIA MOTORS AMERICA, INC.

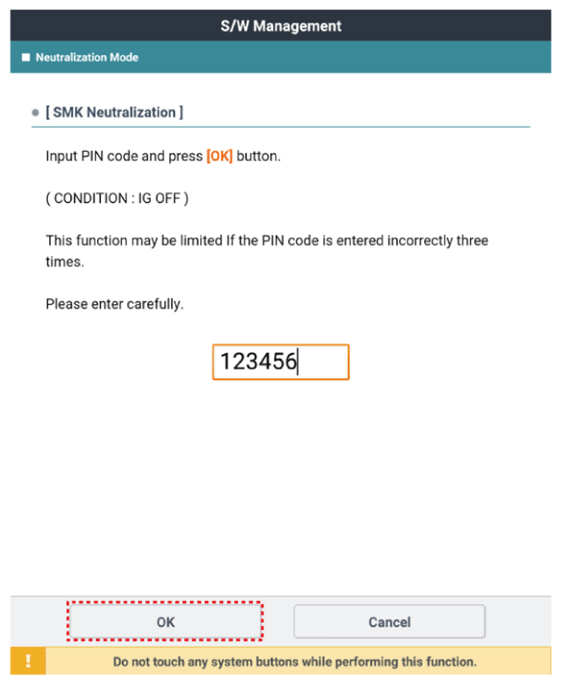

    G13482111Courtesy of KIA MOTORS AMERICA, INC.

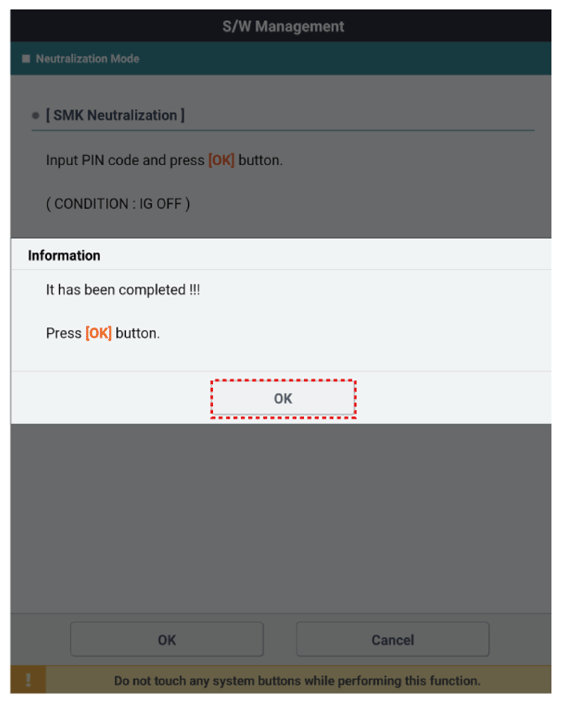

    G13482112Courtesy of KIA MOTORS AMERICA, INC.
