Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER )
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Disconnect the main connector (A) and position switch connector (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable (C) after loosening the nut (A) and bolts (B).
Tightening torque:
1. 9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)
2. 14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.9 - 15.9 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiring mounting bolts (A) and clip (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Separate the ATF cooler hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the ground line after loosening the bolt (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiring bracket loosening the bolt (A).
Tightening torque:

14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.9 - 15.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the CKP sensor (A) loosening the bolt.
Tightening torque:

6.9 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.1 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the transaxle upper mounting bolts (A, B).
Tightening torque:
1. 32.4 - 49.0 N.m (3.3 - 5.0 kgf.m, 23.9 - 36.2 lb.ft)
2. 63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine cover (A) and side cover (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the cowl top cover.
(Refer to Body - "COWL TOP COVER ")
Assemble the engine support fixture on the engine room.
(Refer to Special Service Tools - "ENGINE SUPPORT FIXTURE ASSEMBLY DRAWING ")

NOTE: Be careful not to damage the windshield glass when installing the engine support fixture.

* A: Use the mounting nut of adapter (09200-2W000).

Courtesy of KIA MOTORS AMERICA, INC.
Support the transaxle on a jack.
Remove the front wheel guard on the left side.
(Refer to Body - "FRONT WHEEL GUARD ")

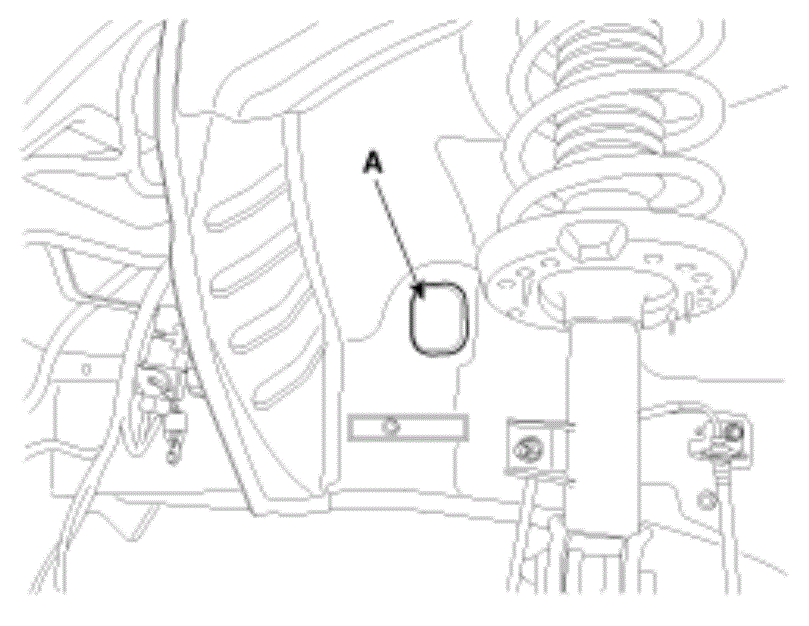

Remove the cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

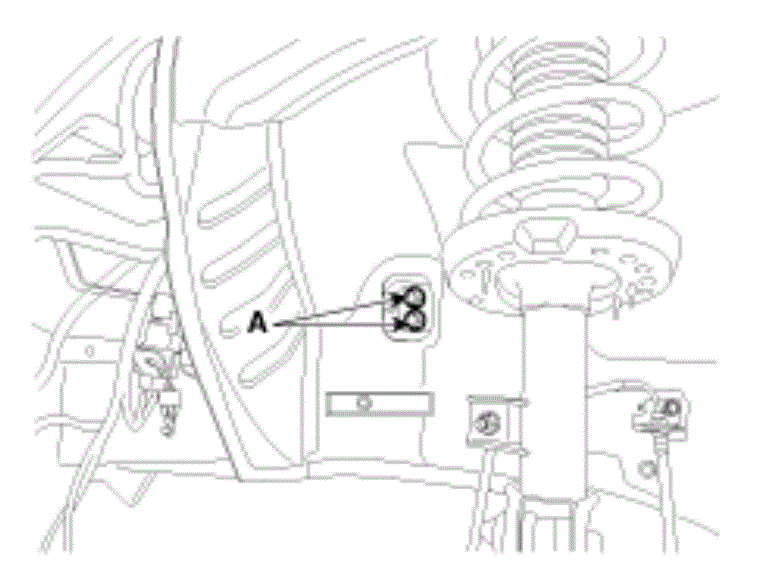

Loosen the transaxle mounting bolts (A).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the transaxle support bracket (A).
Tightening torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the drive shaft assembly.
(Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")
Remove the starter mounting bolts (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the cover (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the torque converter mounting bolts (A-6 pcs) by rotating the crankshaft.
Tightening torque:

45.1 - 52.0 N.m (4.6 - 5.3 kgf.m, 33.3 - 38.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Support the transaxle safely on a jack.
Remove the roll rod bracket (C) after loosening the bolts (A, B).
Tightening torque:
1. 107.9 - 127.5 N.m (5.0 - 6.5 kgf.m, 79.6 - 94.0 lb.ft)
2. 49.0 - 63.7 N.m (11.0 - 13.0 kgf.m, 36.2 - 47.0 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the roll rod support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the transaxle lower mounting bolts (A, B).
Tightening torque:
1. 39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb.ft)
2. 78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.
After separating the transaxle from the engine, remove the transaxle by lowering the jack slowly.

NOTE: Be careful not to damage other nearby systems or parts when removing the transaxle assembly.
