Repair Procedures: Removal
- Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

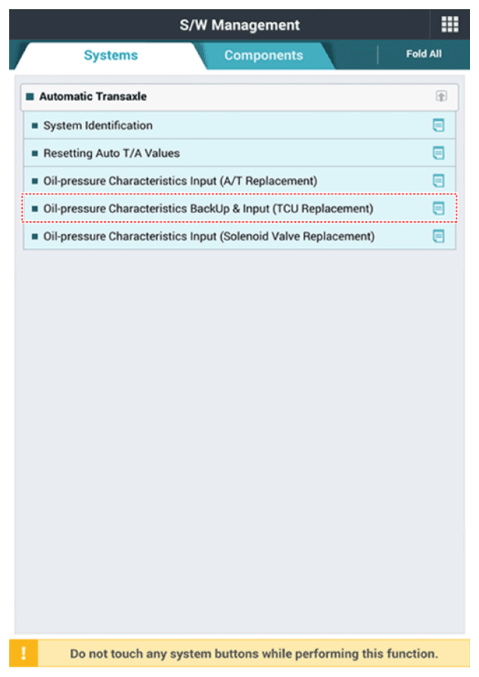

- Click the "Oil-pressure Characteristics Back Up & Input (TCU Replacement)".

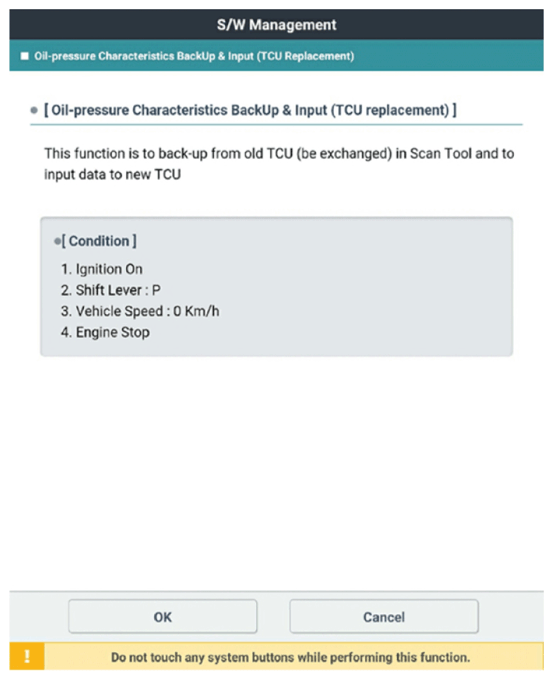

- Check the condition and then click the "OK".

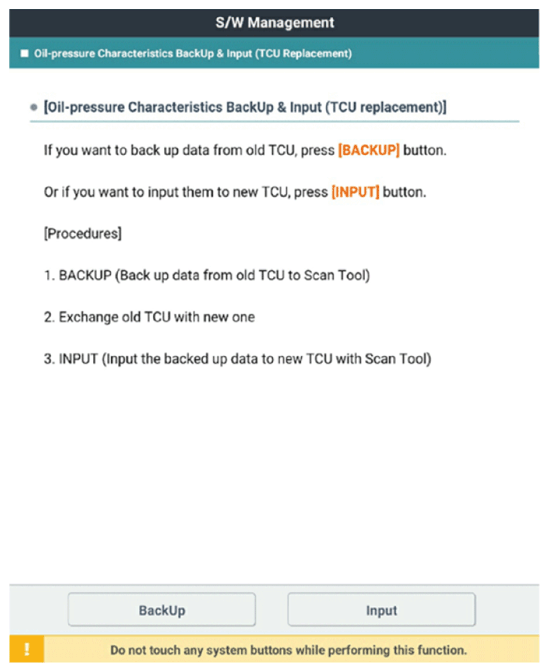

- Click the "BackUp".
- Click the "Oil-pressure Characteristics Back Up & Input (TCU Replacement)".
- Disconnect the battery negative terminal.

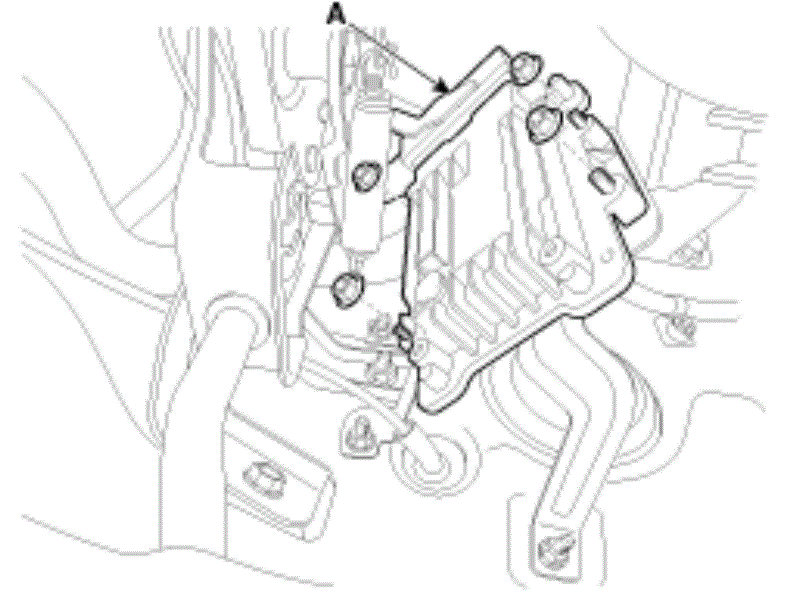

- Remove the TCM by loosening nuts after disconnecting the TCM connector (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
