2021 Kia Rio LXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Installation

  1. Check that the shift lever is placed in the "N" position.

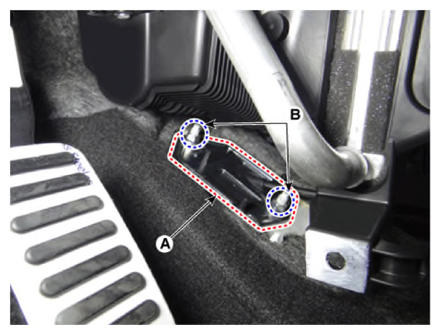

  2. Install the shift cable retainer (A) by tightening nuts (B).

    Tightening torque:

    11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)

    G13704838Courtesy of KIA MOTORS AMERICA, INC.

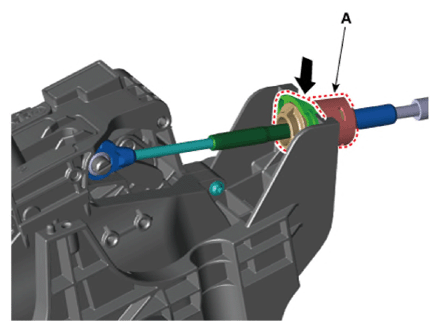

  3. Install the cable socket (A).
    G13704839Courtesy of KIA MOTORS AMERICA, INC.

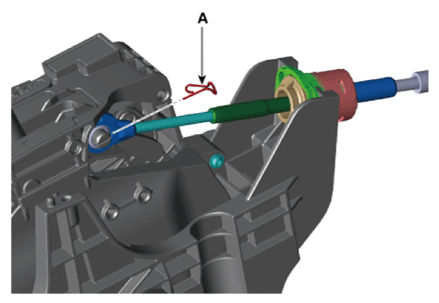

  4. Install the shift cable to the lever pin and then insert the snap pin (A).
    G13704840Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

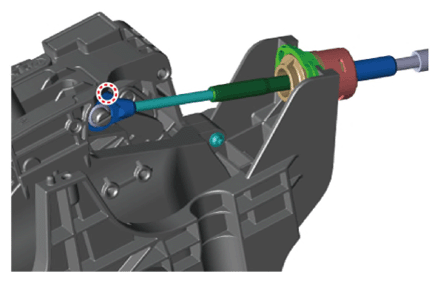

    • Install the shift cable after checking the direction of projection to prevent incorrect assembly.
      G13704841Courtesy of KIA MOTORS AMERICA, INC.

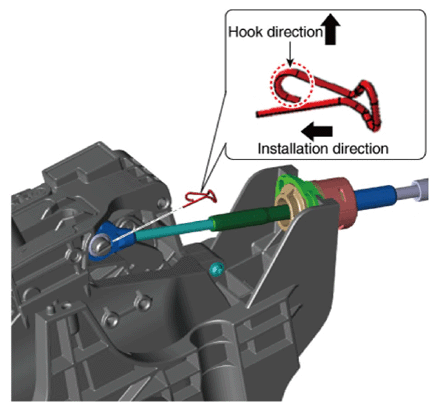

    • Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
      G13704842Courtesy of KIA MOTORS AMERICA, INC.
  5. Install the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

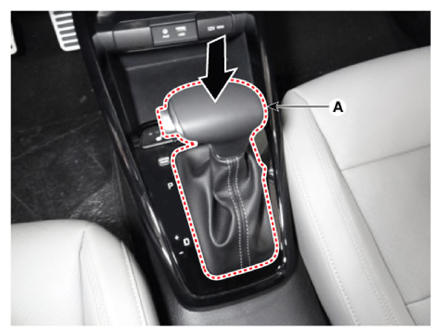

  6. Install the knob (A) by pressing it in the direction of arrow after installing the boots to the console upper cover.
    G13704843Courtesy of KIA MOTORS AMERICA, INC.

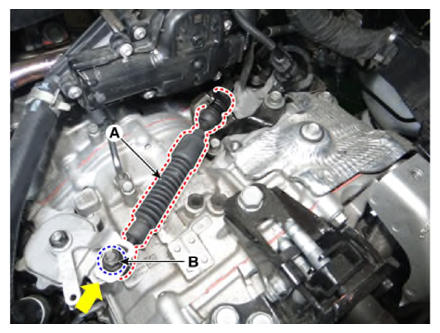

  7. Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable (B) in the direction of the arrow.

    Tightening torque:

    9. 8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb.ft)

    G13704844Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: The existing shift cable clip must be replaced with new one. (Do not reuse it.)
    G13704845Courtesy of KIA MOTORS AMERICA, INC.
  8. Install the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  9. Install the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")
