2021 Kia Rio LXFACTORY OEM SERVICE PROCEDURE

Charging System: Battery

AGM60L-DIN

Item Specification
Capacity [20HR/5HR] (AH) 60/48
Cold Cranking Amperage (A) 640 (SAE/EN)
Reserve Capacity (Min) 100

Information

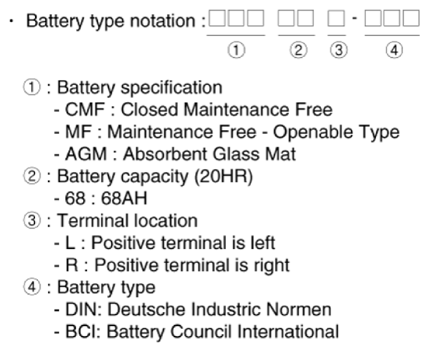

  • Model type description
    G13704424Courtesy of KIA MOTORS AMERICA, INC.
  • Cold Cranking Ampere (CCA): Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
    • The rating is the number of amps a new, fully charged battery can deliver at -18°C (-0.4°F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
    • The higher the CCA rating, the greater the starting power of the battery.
  • RESERVE CAPACITY (RC): Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.
    • The rating is the number of minutes a battery at 26.7°C (80°F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
    • The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.

Information

[BCI Type]

Capacity (5HR/20HR) Length Width Height Total Height
L (mm) W (mm) H (mm) TH (mm)
28/35 188 - 192 126 - 130 198 - 202 218 - 222
32/40 194 - 198 133 - 137 199 - 203 223 - 227
36/45 203 - 207 173 - 177 200 - 204 221 - 225
44/55 213 - 217 173 - 177 198 - 202 218 - 222
48/60 228 - 232 173 - 177 200 - 204 221 - 225
54/68 258 - 262 173 - 177 198 - 202 220 - 224
56/70 258 - 262 173 - 177 198 - 202 223 - 227
64/80 274 - 278 170 - 174 198 - 202 221 - 225
70/88 349 - 353 172 - 176 186 - 200 183 - 187
72/90 300 - 304 170 - 174 200 - 204 221 - 225
76/95 294 - 298 172 - 176 198 - 202 220 - 224
80/100 326 - 330 170 - 174 203 - 207 225 - 229

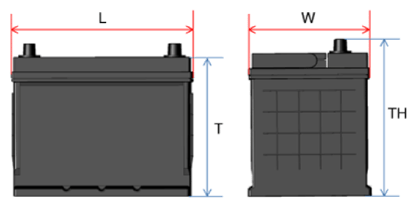

G13704425Courtesy of KIA MOTORS AMERICA, INC.

[DIN Type]

Capacity (5HR/20HR) Length Width Height Total Height
L (mm) W (mm) H (mm) TH (mm)
36/45 205 - 207 173 - 175 164 - 168 188 - 190
48/60 240 - 242 173 - 175 164 - 168 188 - 190
54/68 276 - 278 173 - 175 164 - 168 188 - 190
64/80 351 - 353 173 - 175 164 - 168 188 - 190
72/90 351 - 353 173 - 175 164 - 168 188 - 190
80/100 351 - 353 173 - 175 164 - 168 188 - 190
88/110 392 - 394 173 - 175 164 - 168 188 - 190

[AGM DIN Type]

Capacity (5HR/20HR) Length Width Height Total Height
L (mm) W (mm) H (mm) TH (mm)
40/50 205 - 207 173 - 175 164 - 168 188 - 190
48/60 227 - 229 173 - 175 164 - 168 188 - 190
56/70 276 - 278 173 - 175 164 - 168 188 - 190
64/80 312 - 314 173 - 175 164 - 168 188 - 190
72/90 351 - 353 173 - 175 164 - 168 188 - 190
84/105 392 - 394 173 - 175 164 - 168 188 - 190

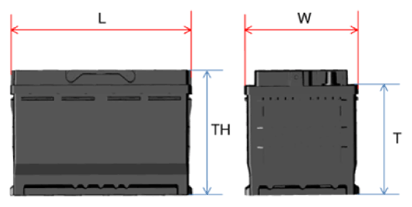

G13704426Courtesy of KIA MOTORS AMERICA, INC.
