2021 Kia Rio LXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Removal

  1. Turn the ignition switch OFF, and then remove battery (-) cable.
  2. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

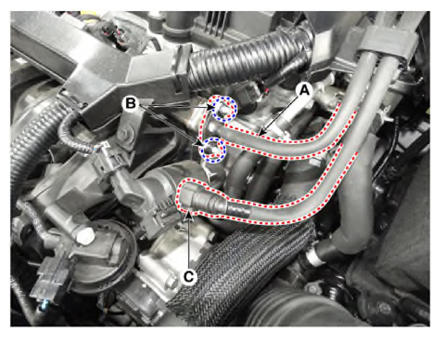

  3. Disconnect the fuel feed tube (A) after remove the nuts (B).
  4. Disconnect the vapor tube quick-connector (C) which is connected from the PCSV.
    G13704769Courtesy of KIA MOTORS AMERICA, INC.
  5. Lift the vehicle.
  6. Remove the fuel tank.

    (Refer to Fuel Delivery System - "FUEL TANK ")

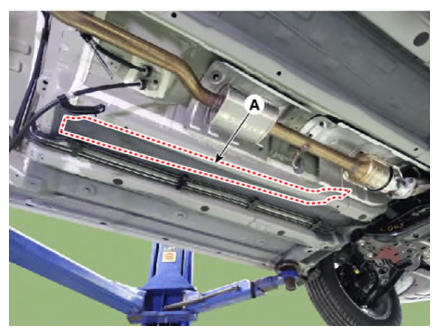

  7. Disconnect the fuel & brake line protect (A) from the fixing clip.
    G13704770Courtesy of KIA MOTORS AMERICA, INC.

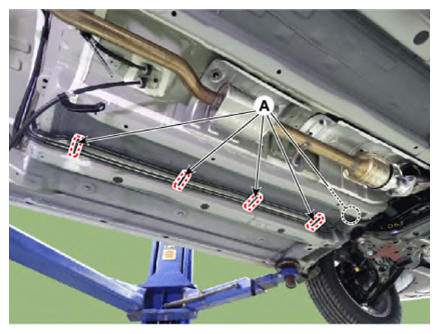

  8. Remove the fuel line fixing clip (A).
    G13704771Courtesy of KIA MOTORS AMERICA, INC.

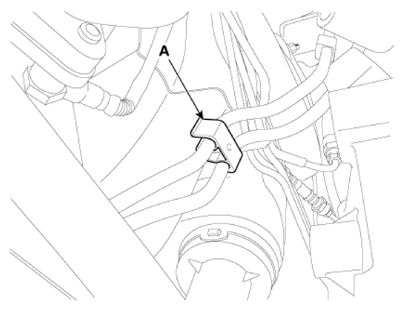

  9. Remove the fuel line fixing clip (A).
    G13704772Courtesy of KIA MOTORS AMERICA, INC.

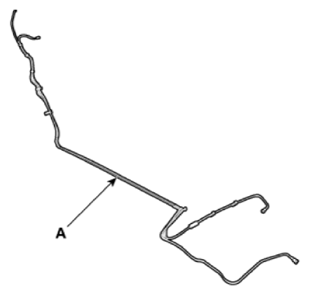

  10. Remove the fuel line (A).
    G13704773Courtesy of KIA MOTORS AMERICA, INC.
