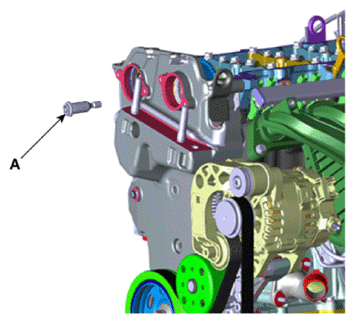

Install the intake OCV & center bolt (A).

Tightening torque:

27.5 - 31.4 N.m (2.8 - 3.2 kgf.m, 20.3 - 23.1 lb.ft) + (38 - 42°)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

To prevent impurities from entering intake OCV & center bolt, wear rubber gloves.

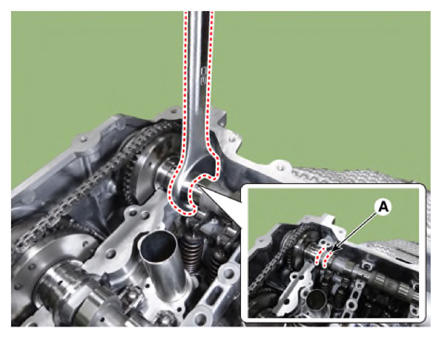

When removing the intake OCV & center bolt, place a wrench at position (A) to prevent the camshaft from rotating.

Courtesy of KIA MOTORS AMERICA, INC.

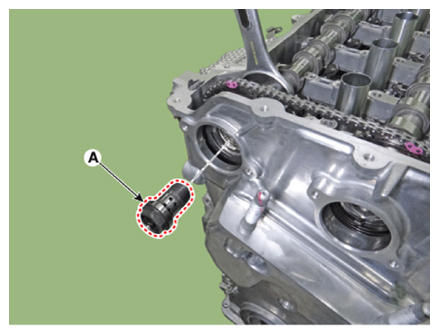

Install the exhaust OCV & center bolt (A).

Tightening torque:

27.5 - 31.4 N.m (2.8 - 3.2 kgf.m, 20.3 - 23.1 lb.ft) + (38 - 42°)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

To prevent impurities from entering exhaust OCV & center bolt, wear rubber gloves.

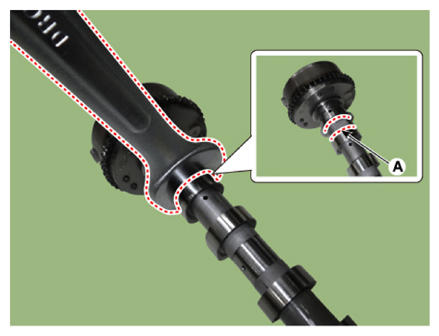

When removing the exhaust OCV & center bolt, place a wrench at position (A) to prevent the camshaft from rotating.

Courtesy of KIA MOTORS AMERICA, INC.

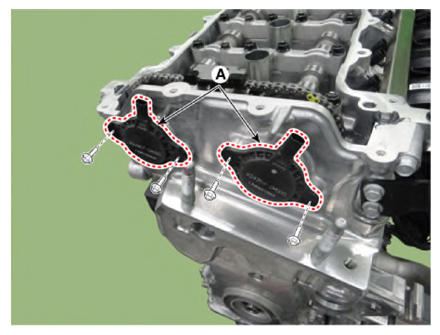

Install the intake and exhaust variable force solenoid (VFS) valve (A).
Tightening torque:

9.8 -11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install the cylinder head cover.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ").
