Driver Power Window Switch
- Disconnect the negative (-) battery terminal.
- Remove the front left door trim.

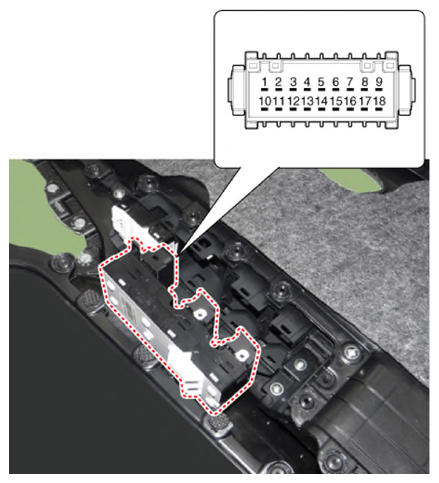

- Disconnect the power window switch connector from the door trim.
- Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

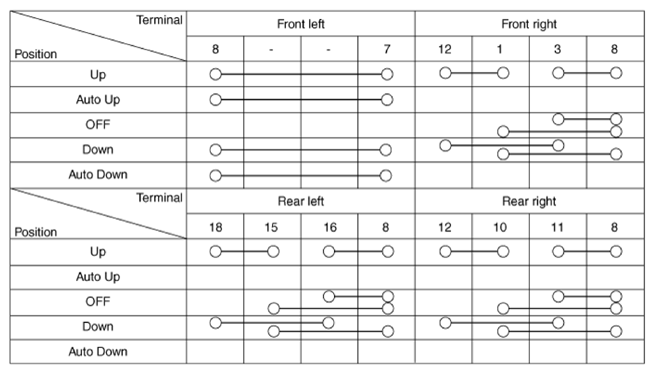

[Front/Rear Driver Safety - Auto Up/Down]

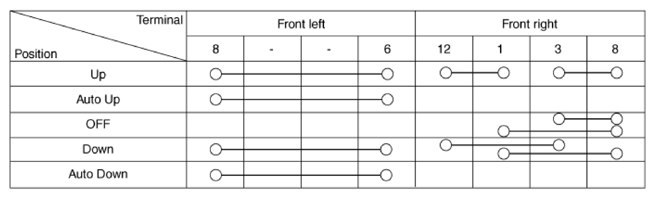

[Front Driver Safety - Auto Up/Down]

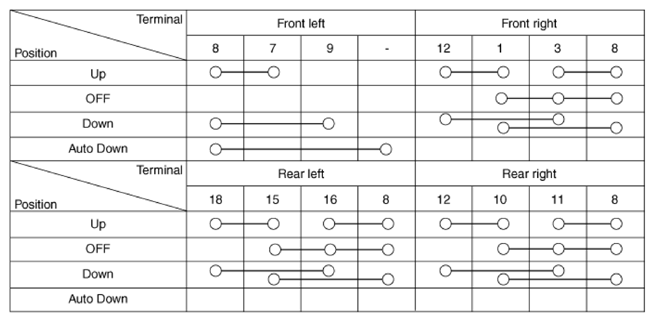

[Front/Rear Auto Down]

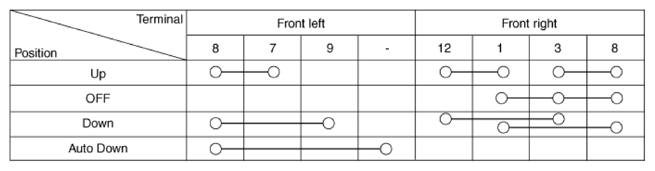

[Front Auto Down]
