2021 Kia Rio LXFACTORY OEM SERVICE PROCEDURE
Smart Key Code Saving

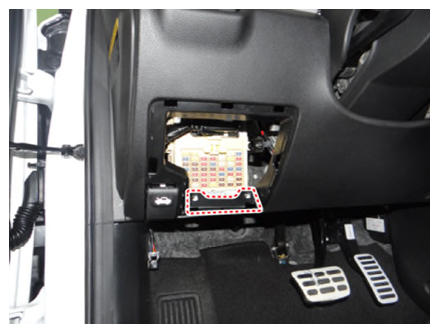

- Connect the DLC cable of KDS/GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on KDS/GDS.

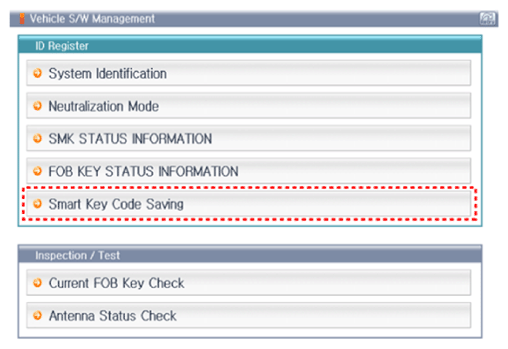

- Select the vehicle model and then do "Smart key code saving".
- After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

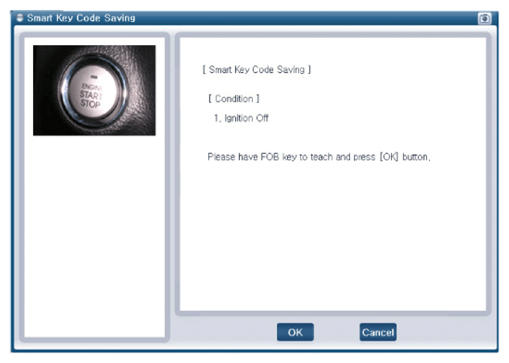

- After having the teaching smart key, push "ENTER" key.

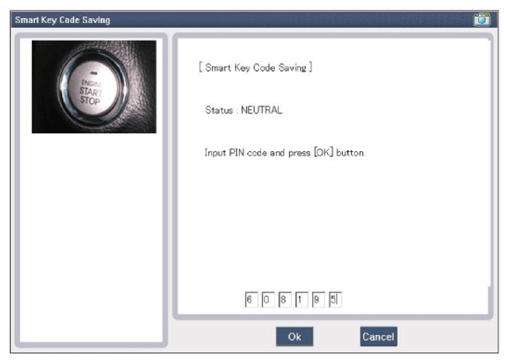

- Input the "Pin code" for first key teaching.

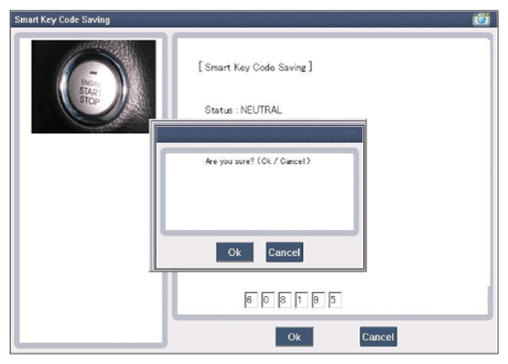

- Press the SSB with smart key within 5 sec after pressing "OK".

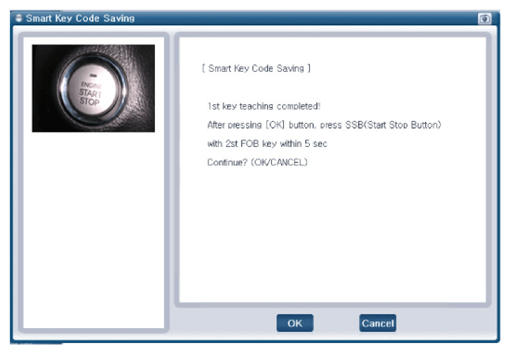

- Confirm the message "First key teaching completed".
- Press the SSB with smart key within 5 sec after pressing "OK".

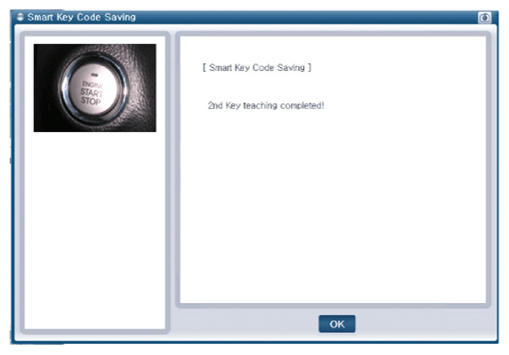

- Confirm the message "Second key teaching completed".

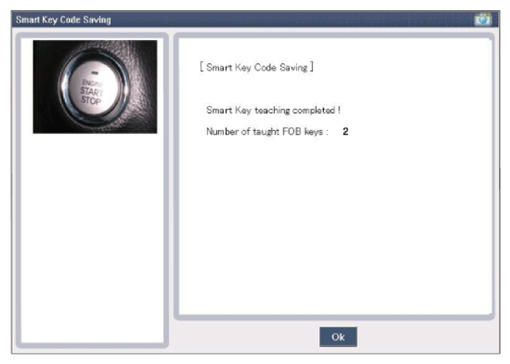

- Then the screen will be shown as below when key teaching process is completed.
