2021 Kia Niro Plug-In Hybrid LXSFACTORY OEM SERVICE PROCEDURE
Special Service Tools
| Tool Name/Number | Illustration | Description |
|---|---|---|
| Fuel Pressure Gauge 09353-24100 |
Used for measuring the pressure in fuel line | |
| Fuel Pressure Gauge Adapter 0K353-D4100 |
Used for connecting between high pressure fuel pump and low pressure fuel feed tube to measure the pressure in fuel line *SST 09353-02100 also can be used |
|
| Heated Oxygen Sensor Socket Wrench 09392-1Y100 |
Used for removing/installing heated oxygen sensor * SST No. 09392-2H100 model also can be used for removing the Heated Oxygen Sensor. |
|
| Torque Wrench Socket (19mm) 09314-3Q100 |
Used for removing/installing high pressure fuel pipe * SST No. 09314-27130 also can be used. |
|

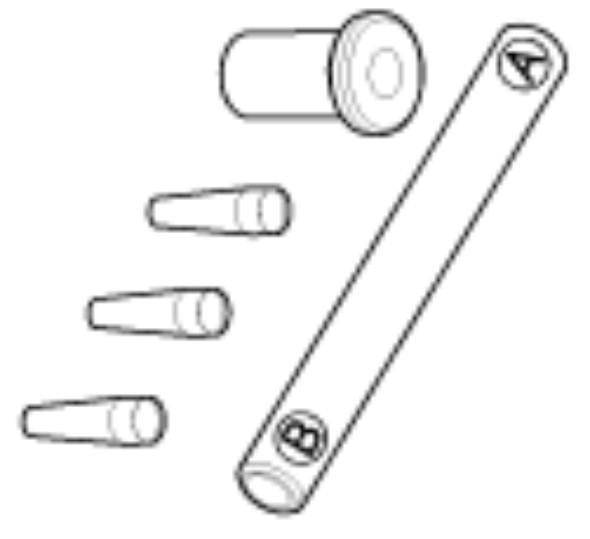

| Injector Combustion Seal Guide & Sizing tool 09353-2B000 |
Used for installing injector combustion seal on injector | |
| Fuel pump plate cover remover 09310-B8100 |
Used for removing/installing fuel pump |
