2021 Kia Niro Plug-In Hybrid EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the engine cover.

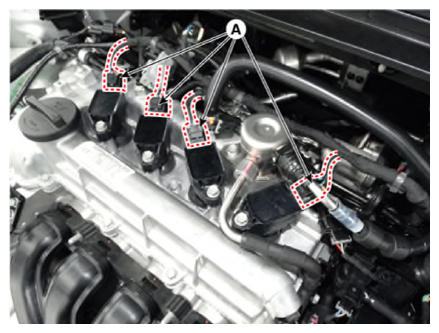

- Disconnect the ignition coil connector (A).

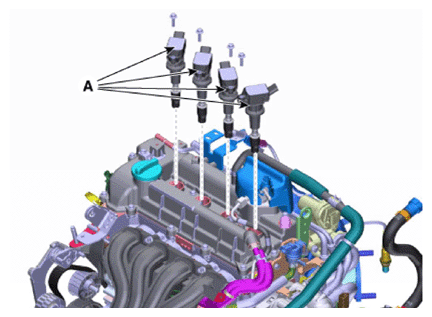

- Remove the ignition coil (A) after loosening the mounting bolt.
Ignition coil mounting bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

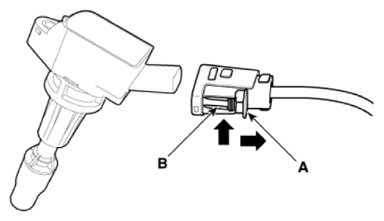

NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
