Repair Procedures: Removal
- Open the fuel filler door.
- Disconnect the battery negative (-) terminal.

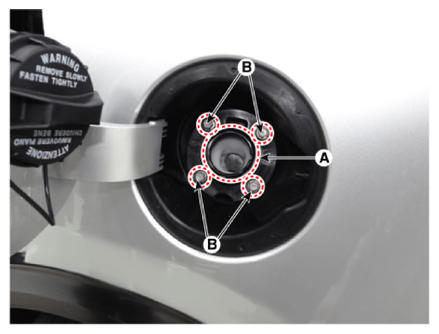

- Separate the filler-neck assembly (A) after loosening mounting bolts (B).

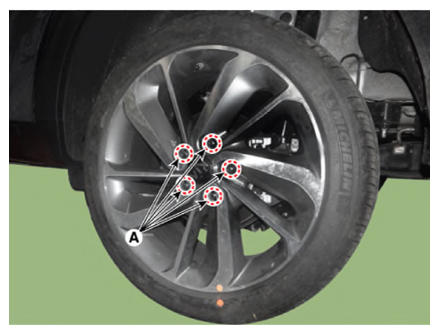

- Remove the rear wheel and tire after loosening the nuts (A).
Tightening torque:
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

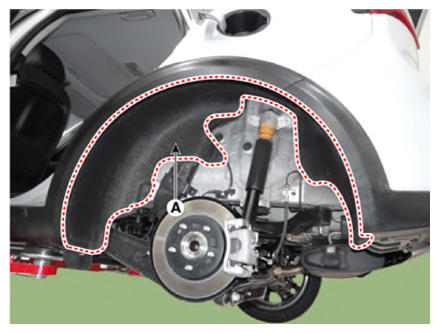

- Remove the rear wheel guard (A). [LH]

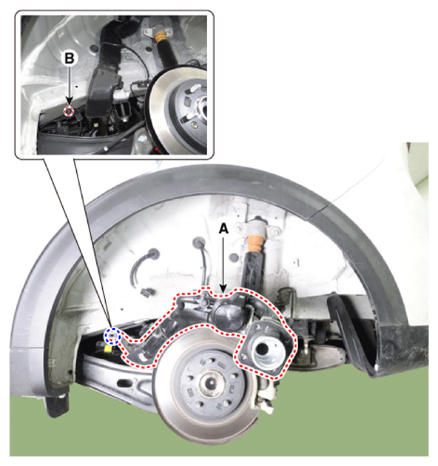

- Separate the filler-neck (A) by loosening the mounting bolt (B).

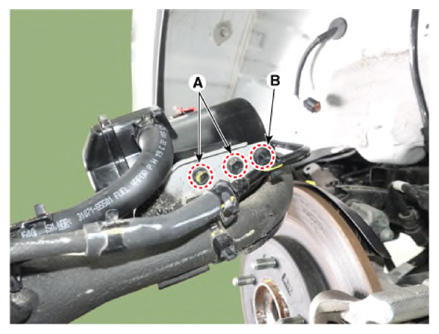

- Remove the fuel tank air filter mounting bolts (A) and fastener (B).
Tightening torque:
3.9 - 7.8 N.m (0.4 - 0.8 kgf.m, 2.8 - 5.7 lb.ft, 34.7 - 69.4 lb.in)

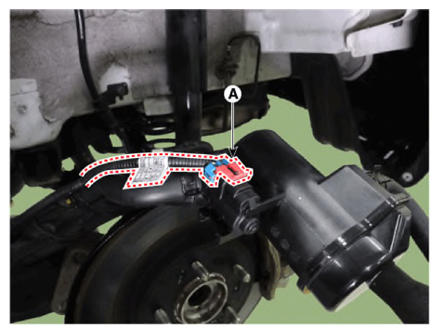

- Disconnect the canister close valve connector (A).

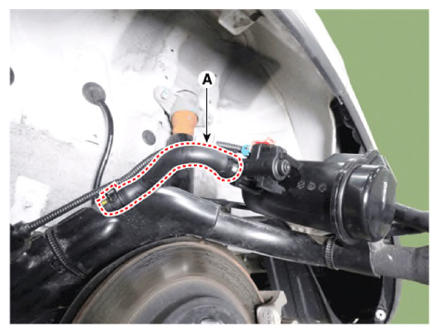

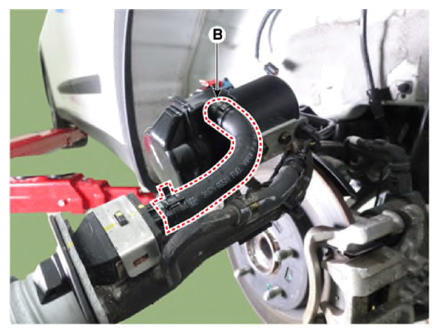

- Separate the ventilation hoses (A, B).

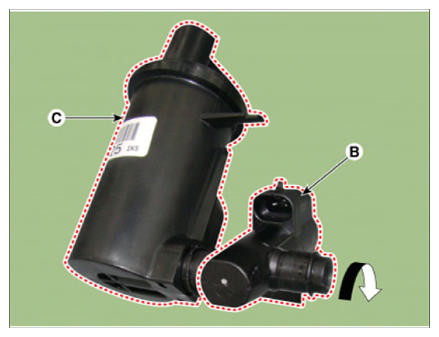

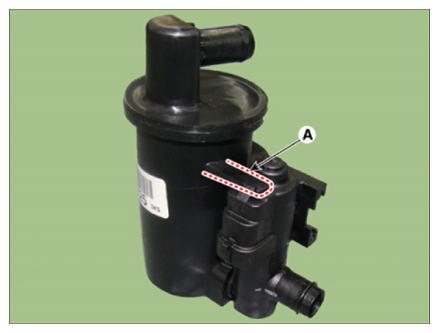

- Remove the CCV (B) from the fuel tank air filter (C) by rotating it in the direction of the arrow after releasing the lever (A).
