E-CVVT Cover
- Remove the vacuum pump.
(Refer to " Removal ")
- Remove the engine mounting support bracket.
(Refer to " Engine Mounting Bracket ")

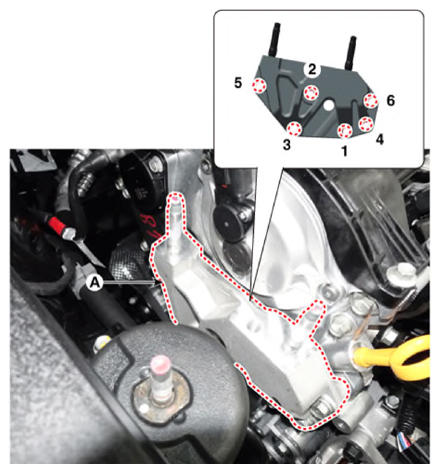

- Remove the engine support bracket (A) after removing the mounting bolts.
Information
Remove in order of 6→5→4→3→2→1

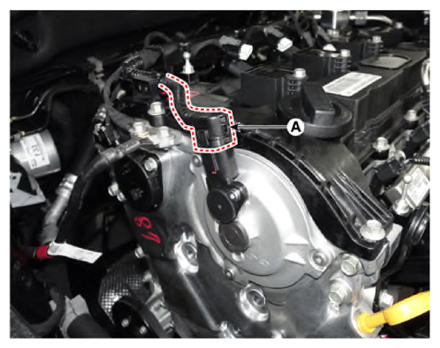

- Disconnect the E-CVVT cover connector (A).

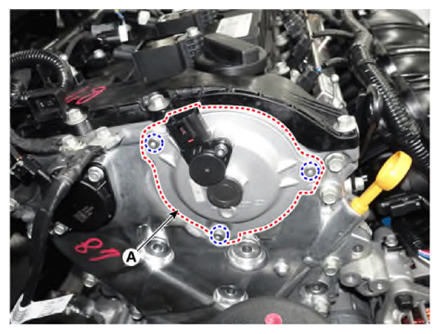

- Remove the E-CVVT cover (A) after removing the mounting bolts.NOTE: Be careful not to apply the force on the connector brush after removing the E-CVVT cover.
