Repair Procedures: Removal
- Disconnect the battery negative (-) terminal.

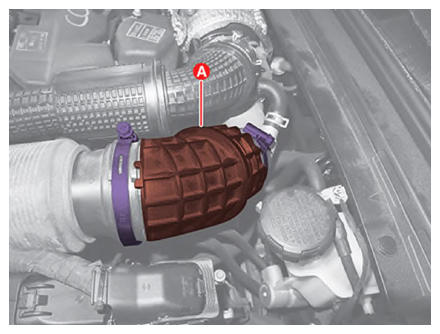

- Remove the air intake hose (A) after loosening the clamp bolts.
Tightening torque:
2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft, 26.0 - 43.4 lb.in)

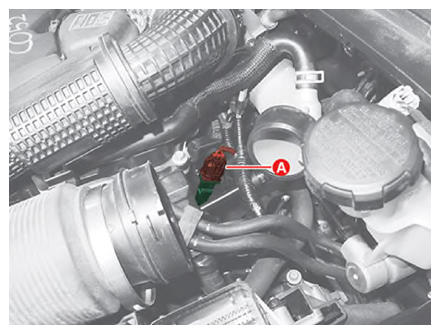

- Separate Crankshaft Position Sensor (CKPS) connector (A) from the bracket.

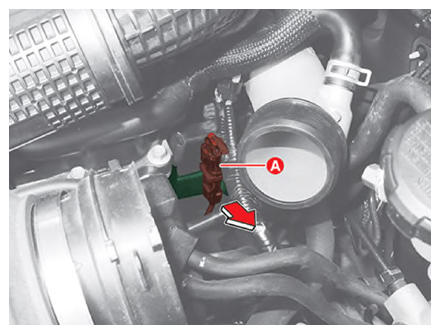

- Disconnect the CKPS connector (A).
- Remove the engine room under cover.
(Refer to " Removal And Installation ")
- Remove the Crankshaft Position Sensor (CKPS) heat protector (A) after removing the mounting bolt.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

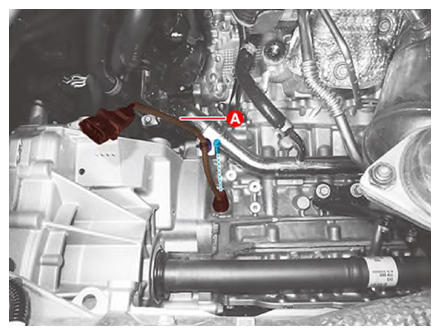

- Remove the CKPS (A) by removing the bolt after removing the wiring fixing clip.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
