Repair Procedures: Removal: Exhaust
- Disconnect the battery negative (-) terminal.

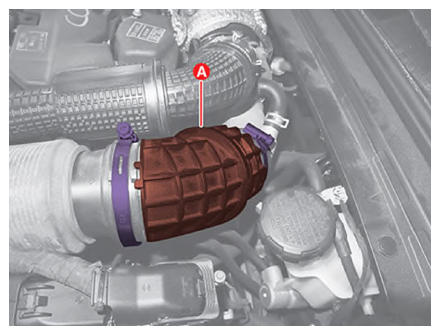

- Remove the air intake hose (A) after loosening the clamp bolts.
Tightening torque:
2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft, 26.0 - 43.4 lb.in)

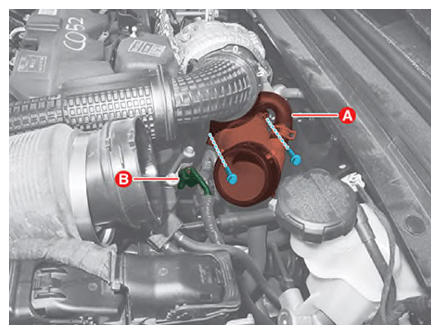

- Disconnect the Camshaft Position Sensor (CMPS) connector (B) and separate the turbocharger hose adapter (A) by removing the bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

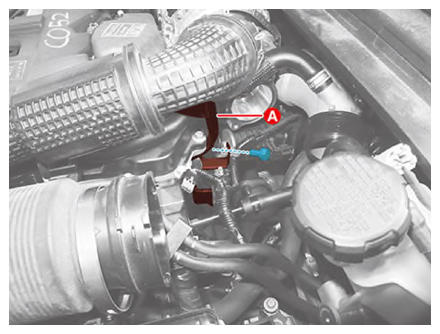

- Remove the engine hanger (A) after removing the mounting bolt.
Tightening torque:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

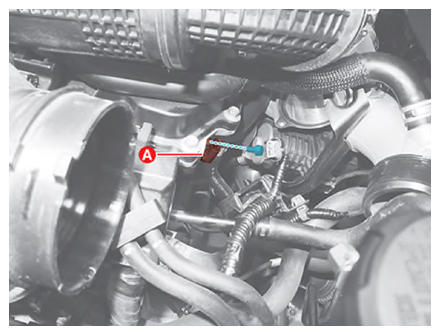

- Remove the CMPS after removing the mounting bolt.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
