2021 Kia K5 EXFACTORY OEM SERVICE PROCEDURE

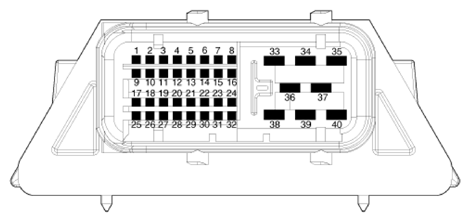

Connector And Terminal Function

G13834286Courtesy of KIA MOTORS AMERICA, INC.
Pin Function Pin Function
1 Power 21 -
2 Ground 22 -
3 CCP-CAN High 23 -
4 CCP-CAN Low 24 -
5 P-CAN High 25 -
6 P-CAN Low 26 -
7 Position sensor ground 27 Position sensor signal 1
8 - 28 Position sensor signal 2
9 - 29 P position output signal
10 Position sensor power 5 V 30 -
11 Electronic shift actuator sensor power 5 V 31 Back-up lamp signal
12 IG 1 32 -
13 Electronic shift actuator sensor signal 2 33 Electronic shift actuator motor U
14 Electronic shift actuator sensor signal 1 34 Electronic shift actuator motor V
15 Electronic shift actuator sensor ground 35 Electronic shift actuator motor W
16 - 36 Power
17 - 37 Electronic shift actuator power
18 - 38 Ground
19 - 39 -
20 - 40 -
