Repair Procedures: Removal
- Automatic transaxle is composed of delicate components. Be careful not to cause any damage on the component in the course of assembly and disassembly.
- Maintain clean condition so that foreign substance does not get into the automatic transaxle.
- Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.
- Remove the under cover.
(Refer to " Removal And Installation ")
- Drain the engine coolant.
(Engine Mechanical System - "Coolant")

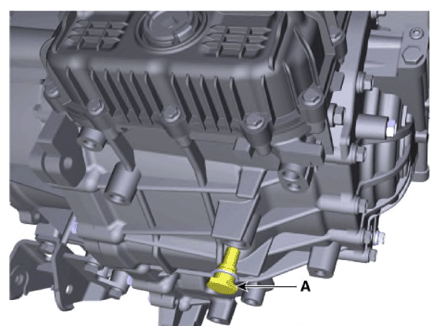

- Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque:
33.3 - 43.1 Nm (3.4 - 4.4 kgf m, 24.6 - 31.8 lb ft)
NOTE:- Automatic transaxle fluid (ATF) can be reused. Collect it using a clean 10-liter beaker.
- The existing ATF drain plug gasket must be replaced with a new one (do not reuse).
- Remove the air cleaner assembly.
(Refer to " Removal And Installation ")

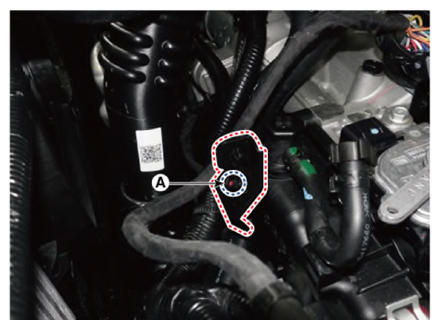

- Remove the wiring bracket (A).
Tightening torque:
9.8 - 11.8 N m (1.0 - 1.2 kgf m, 7.2 - 8.7 lb ft)
- Remove the ATF warmer.
(Refer to " Removal ")

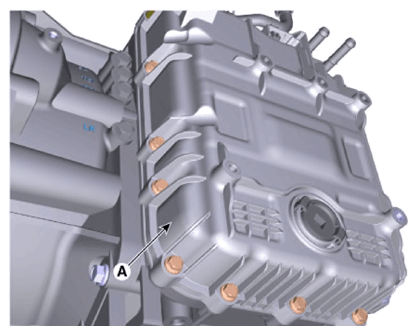

- Remove the valve body cover (A) after removing the bolts.
Tightening torque:
11.8 - 13.7 N m (1.2 - 1.4 kgf m, 8.7 - 10.1 lb ft)

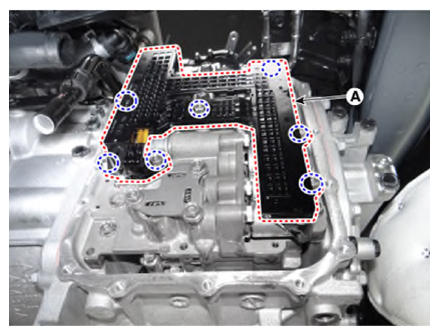

- Remove the main harness (A) after removing the bolts.
Tightening torque:
9.8 - 11.8 N m (1.0 - 1.2 kgf m, 7.2 - 8.7 lb ft)

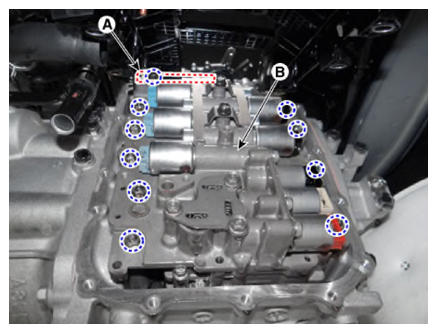

- Remove the detent spring (A), then remove the valve body assembly (B) by removing the bolts.
Tightening torque:
- 24.5 - 35.3 N m (2.5 - 3.6 kgf m, 18.1 - 26.0 lb ft)
- 9.8 - 11.8 N m (1.0 - 1.2 kgf m, 7.2 - 8.7 lb ft)

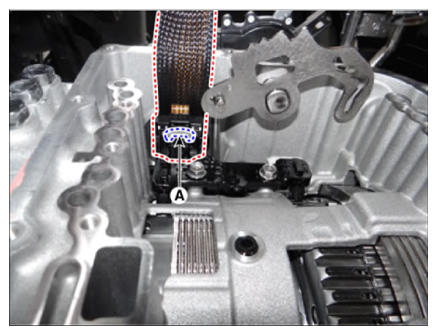

- Disconnect the speed sensor connector (A).

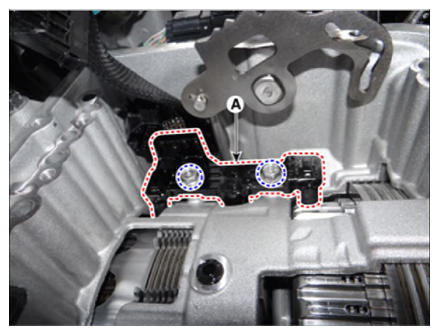

- Remove the speed sensor (A).
Tightening torque:
9.8 - 11.8 N m (1.0 - 1.2 kgf m, 7.2 - 8.7 lb ft)
