Repair Procedures: Installation

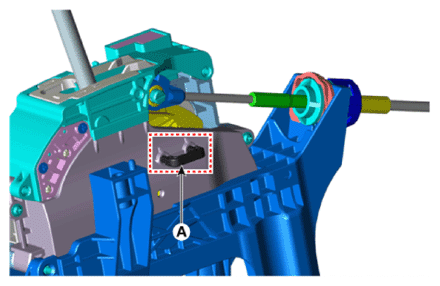

- Insert "N range fixing pin"(A) of shift lever after checking the shift lever and manual control lever are on "N" range.

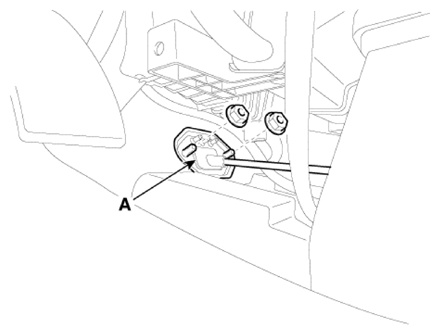

- Install the shift cable retainer (A) by tightening nuts.
Tightening torque:
9.8 - 14.7 N m (1.0-1.5 kgf m, 7.2 - 10.8 lb ft)

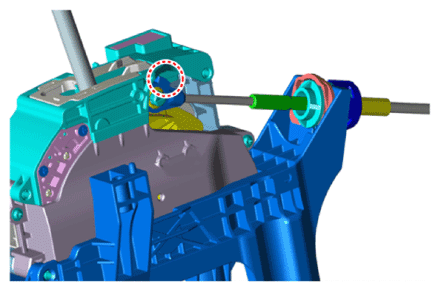

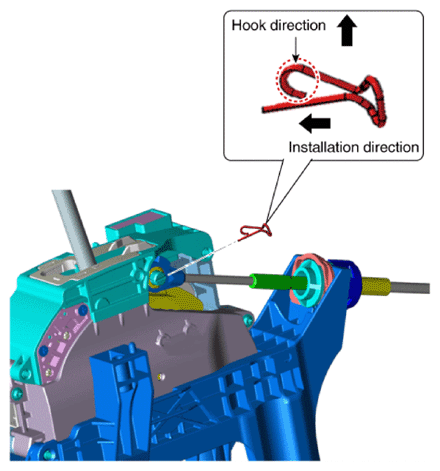

- Insert the snap pin (A) after installing the shift cable.

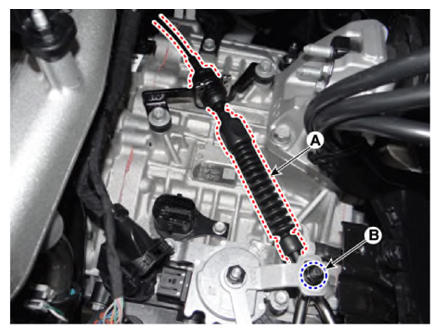

- Install the shift cable (A) to the bracket and tighten the nut (B) lightly.

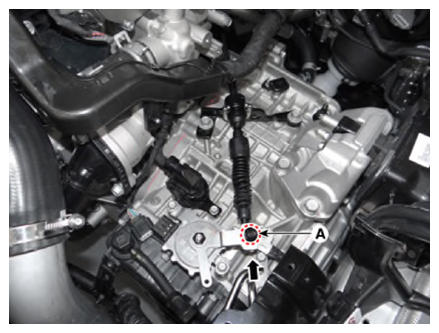

- Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.
Tightening torque:
9.8 - 14.7 N m (1.0-1.5 kgf m, 7.2 - 10.8 lb ft)
- Remove the N range fixing pin (A).
- Install the floor console assembly.
(Refer to " Replacement ")
- Install the battery and battery tray.
(Refer to " Removal ")
