2021 Kia K5 EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Align the front wheels facing straight ahead by turning steering wheel.NOTE: If the steering wheel and the front tires does not synchronize to their centers together, open circuit on the clock spring cable may occur due to excessive steering wheel turning.
- Disconnect the battery (-) terminal.
- Remove the driver airbag module.
(Refer to " Removal ")

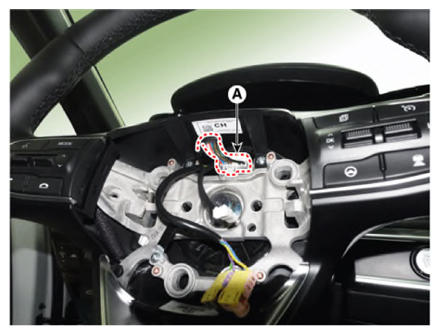

- Disconnect the steering wheel connector (A).

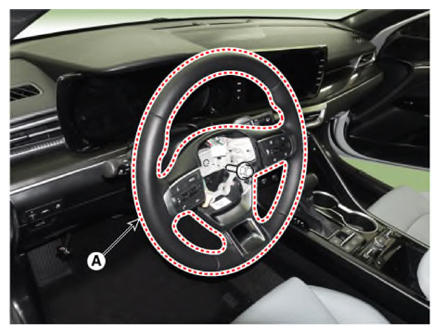

- Remove the steering wheel (A) after loosening the lock bolt.
Tightening torque:
39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb-ft)
NOTE:- Do not use the hammer for disconnecting on the steering column not to damage the steering column.
- Do not reuse the bolt.
