OCS Reset Procedure
You should perform OCS Reset procedure after service or replacement about all part of the passenger seat. (Not included full seat assembly)
- Ignition "OFF", connect KDS.
- Ignition "ON" and Engine "OFF", select S/W Management and "Car model".
- Connect the KDS to the vehicle, select "S/W management" or "Car model"

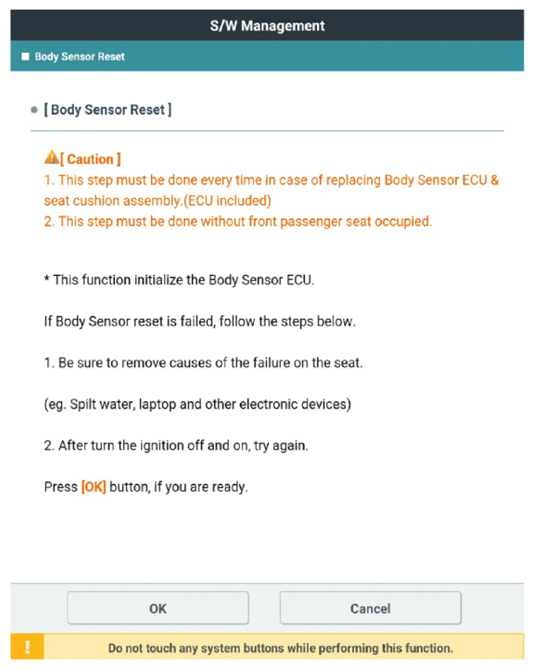

- Select OCS and "Body Sensor Reset".
- Erase the SRSCM diagnostic codes after resetting the OCS.
| DTC Code | Code Name | Description |
|---|---|---|
| B176300 | ECU Defect |
|
| B176400 | MAT Defect |
|
| B17672F | Also cut-off |
|
| B111117 | IGN voltage high |
|
| B111216 | IGN voltage low |
|
| B160388 | CAN bus off |
|
| B169787 | ACU communication error |
|
