2021 Kia K5 EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal.
- Remove the steering wheel assembly.
(Refer to " Removal ")

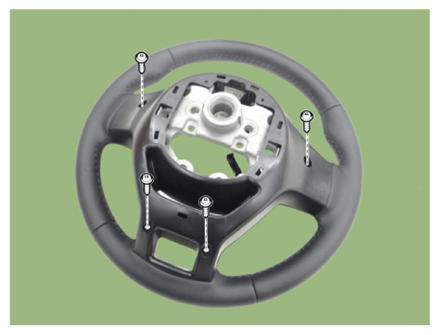

- Loosen the mounting screws (A).

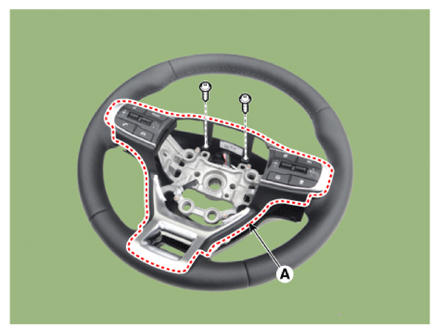

- Remove the steering wheel remote controller assembly (A) by loosening the mounting screws.

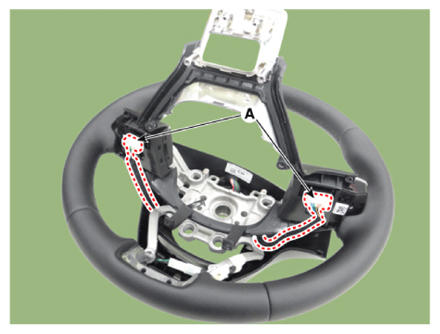

- Disconnect the steering wheel remote controllers connectors (A).

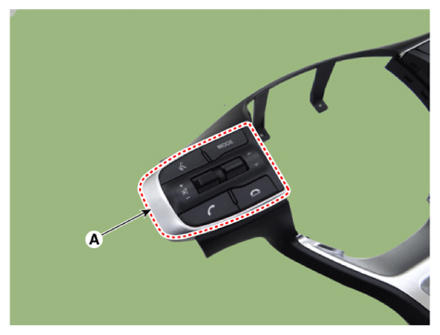

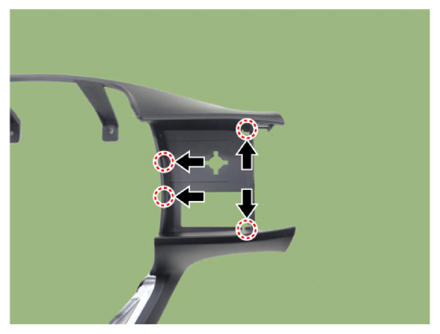

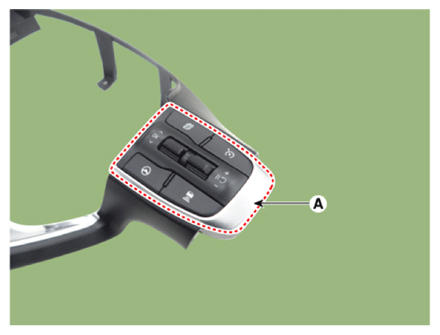

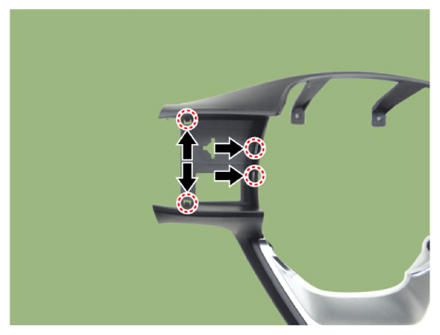

- Remove the steering wheel remote controllers (A) by pushing the hooks in the direction of arrow.
[LH]
[RH]
