Repair Procedures: Removal
- When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Remove the AVN/Audio head unit carefully not to scratch the cockpit in the top of the cluster.
- Disconnect the negative battery terminal.
- Remove the crash pad garnish [RH].
(Refer to " Crash Pad Garnish [RH] ")
- Remove the audio head unit.
- Remove the center fascia upper panel (A) by using a screwdriver or remover.

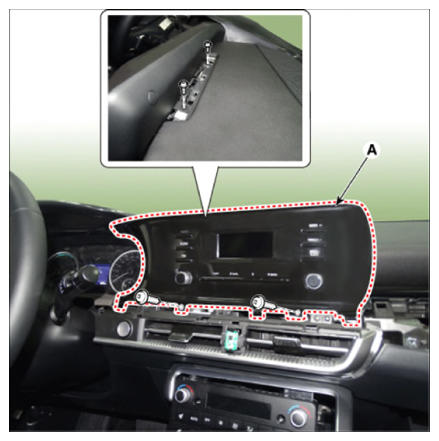

- Remove the audio head unit (A)after loosening the mounting screws.

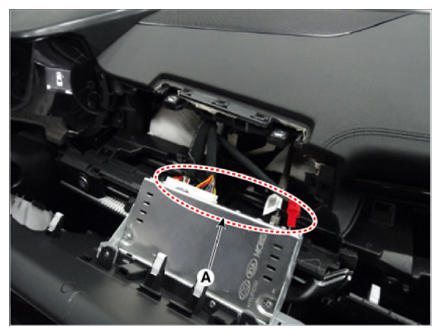

- Disconnect the all connectors (A) from the audio head unit.
- Remove the center fascia upper panel (A) by using a screwdriver or remover.
