2021 Kia K5 EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Installation
- Install in the reverse order of removal.
NOTE:
- Install the spark plug with the specified torque.
- Be careful not to damage external electrode when installing the spark plug.
- If spark plug is dropped, it may cause internal damage. Do not use it.

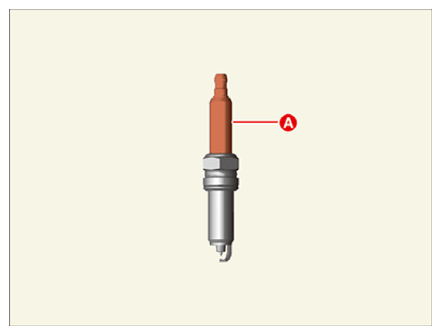

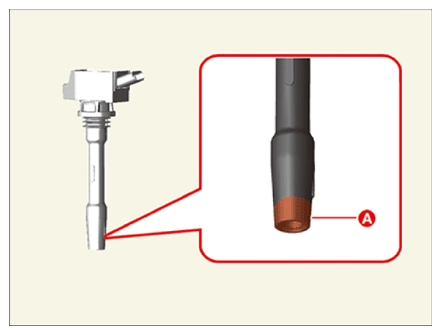

- When assembling the parts, clean the contaminated area (A) with the cloth.
- The cloth should be clean, free of contaminants, and soft enough to not damage the parts. (When replacing ignition coil and spark plug together, cleaning is not required.)
