Repair Procedures: Removal
- Remove the air cleaner assembly.
(Refer to " Removal And Installation ")

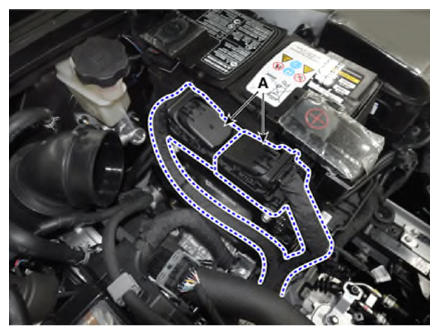

- Disconnect the ECM connector (A).

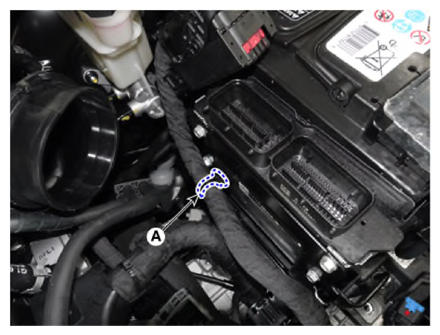

- Remove the wiring clip (A).

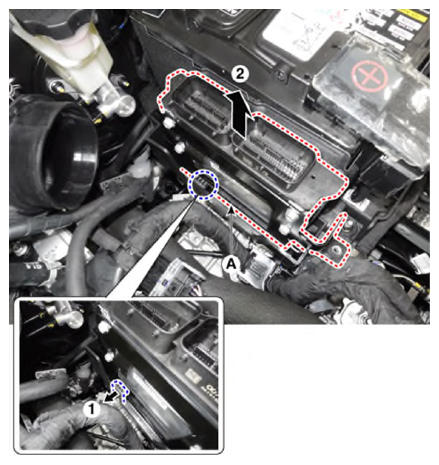

- Remove the ECM (A) by pulling it in the direction of arrow after releasing the hooks.

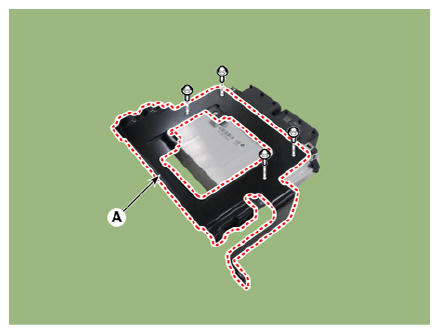

- Remove the bracket (A) from the ECM after removing the mounting bolts.
Tightening torque:
9.8 -11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
