Repair Procedures: Removal
- Disconnect the battery negative (-) terminal.

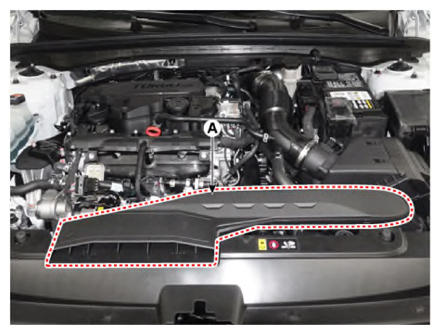

- Remove the air duct (A).
- Remove the front bumper assembly.
(Refer to " Replacement ")

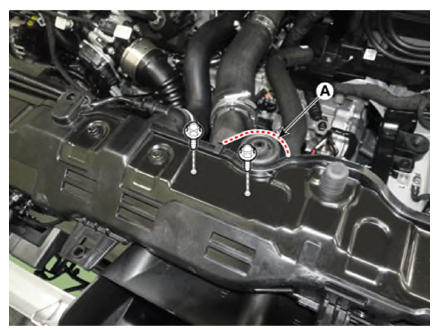

- Remove the bracket (A) after removing the intercooler upper mounting bolts.

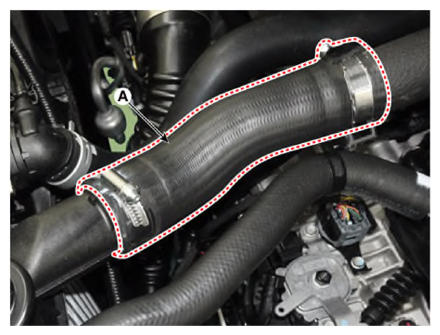

- Separate the intercooler inlet hose (A).
Tightening torque:
4.9 - 6.7 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.0 lb.ft, 43.4 - 60.8 lb.in)

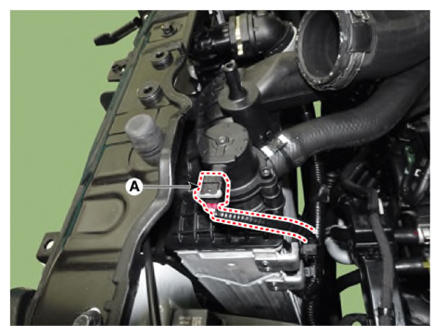

- Disconnect the E-RCV connector (A).

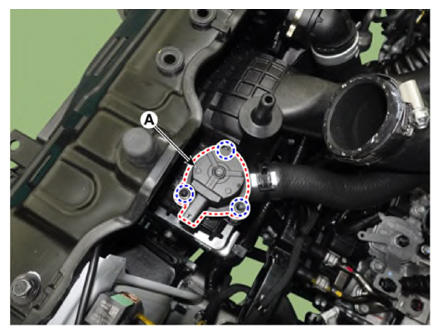

- Remove the E-RCV(A) after removing the mounting bolts.
Tightening torque:
9.8 -11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
