Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.

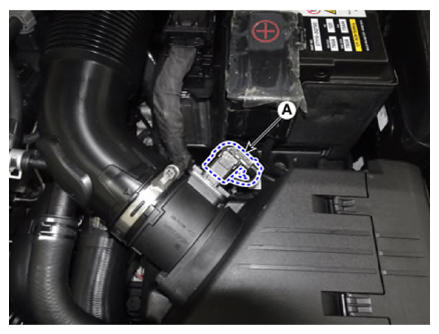

- Disconnect the Air Flow Sensor (AFS) connector (A).

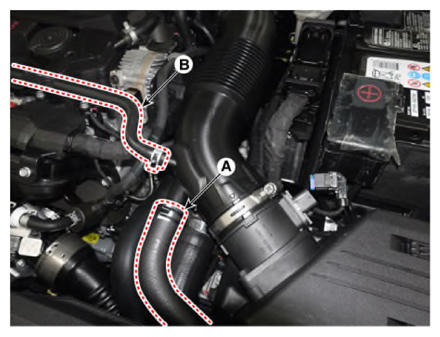

- Disconnect the RCV hose (A) and breather hose (B).

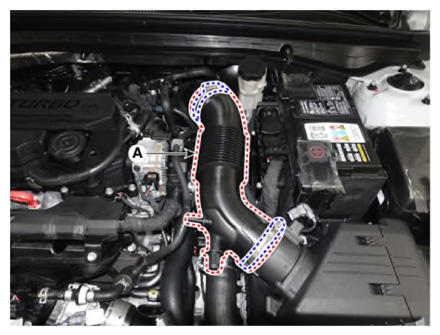

- Remove the air intake hose (A) after removing the clamps.
Tightening torque:
2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft, 26.0 - 43.4 lb.in)

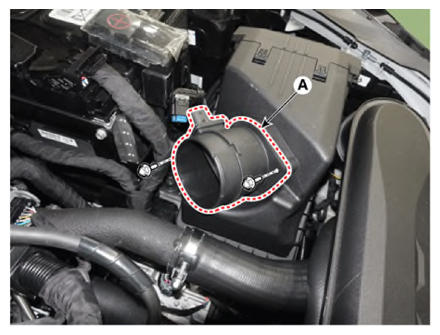

- Remove the AFS (A) after removing the mounting bolts.
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)
