2021 Kia K5 EXFACTORY OEM SERVICE PROCEDURE

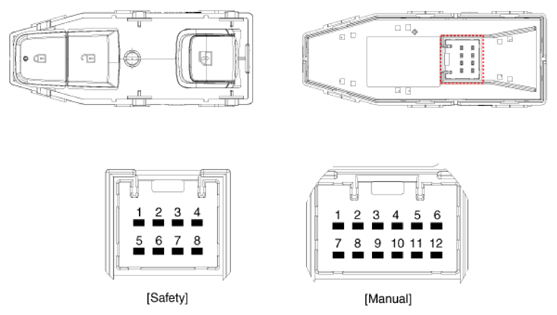

Power Window Sub Switch
| Pin | Function | |
|---|---|---|
| Safety Type | Manual Type | |
| 1 | Ground (Illumination -) | Ground |
| 2 | Door lock switch | Door lock switch |
| 3 | Door unlock switch | Window down motor |
| 4 | Battery + (Illumination +) | Door unlock switch |
| 5 | Ground | Window up motor |
| 6 | Door lock indicator | Door lock indicator |
| 7 | Safety power window | Driver window down |
| 8 | - | Window enble |
| 9 | Ground (Illumination -) | |
| 10 | Driver windowup | |
| 11 | Ground (Illumination +) | |
| 12 | Battery (+) | |
