2021 Kia K5 EXFACTORY OEM SERVICE PROCEDURE

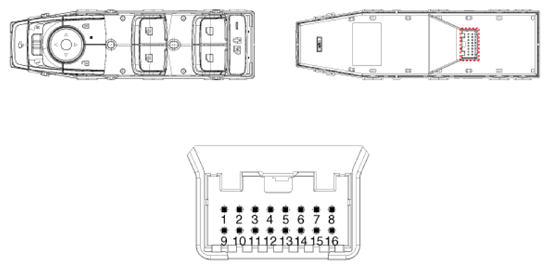

Power Window Main Switch
| Pin | Function |
|---|---|
| 1 | B-CAN (Low) |
| 2 | B-CAN (High) |
| 3 | Ground (Assist safety) |
| 4 | Assist safety |
| 5 | LIN (For IMS) |
| 6 | Battery (+) |
| 7 | IGN1 |
| 8 | Driver safety |
| 9 | IMS Switch (For IMS)/Mirror Common (For Non IMS) |
| 10 | Mirror unfolding motor (Non IMS) |
| 11 | Mirror folding motor (Non IMS) |
| 12 | Mirror horizontal LH (Non IMS) |
| 13 | Mirror vertical LH (Non IMS) |
| 14 | Mirror vertical RH (Non IMS) |
| 15 | Mirror horizontal RH (Non IMS) |
| 16 | Ground |
