2021 Kia K5 EXFACTORY OEM SERVICE PROCEDURE
Smart Key Code Saving
- Connect the VCI II in driver side crash pad lower panel, turn the power on KDS.

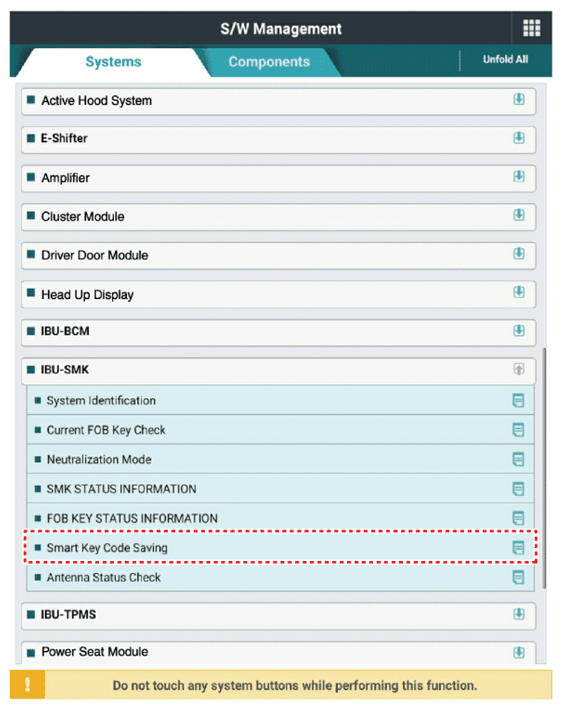

- Select the vehicle model and then do "Smart key code saving".

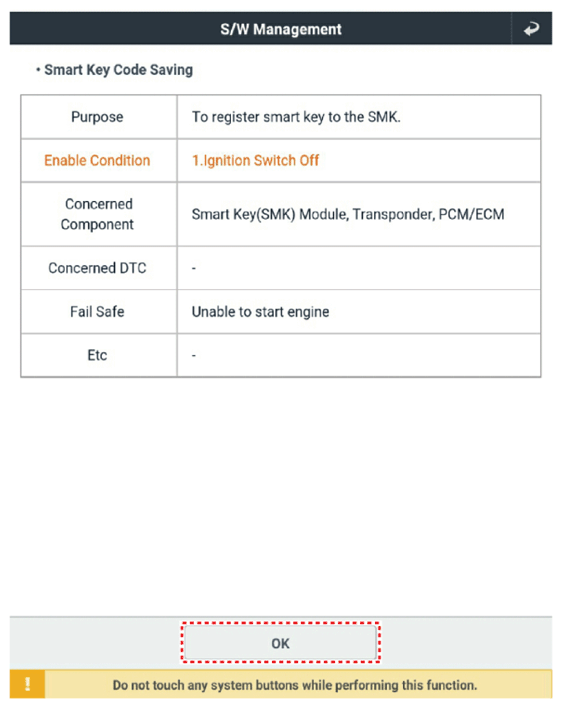

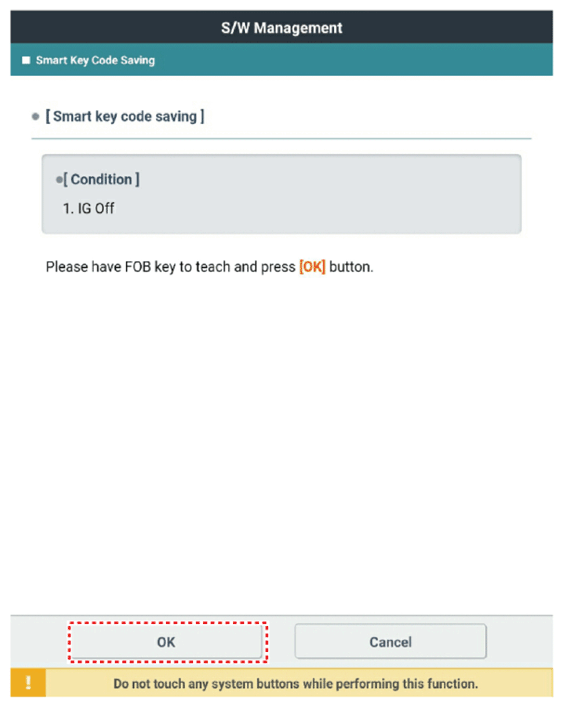

- After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be as shown in the following image.

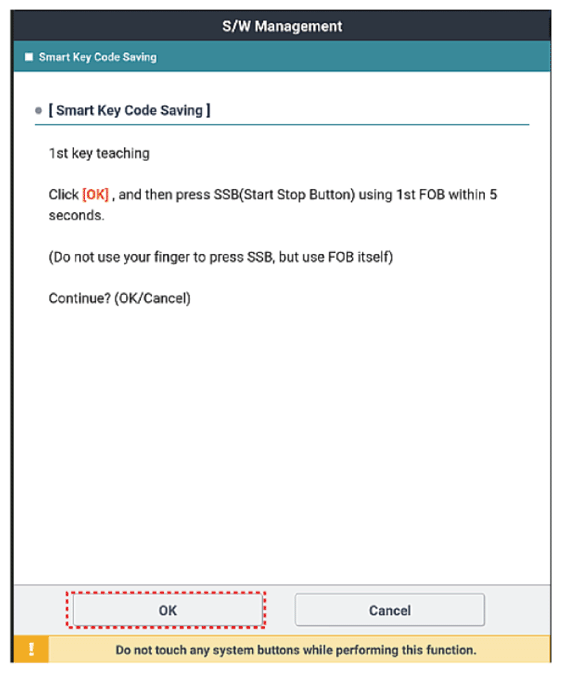

- After having the teaching smart key, push "ENTER" key.

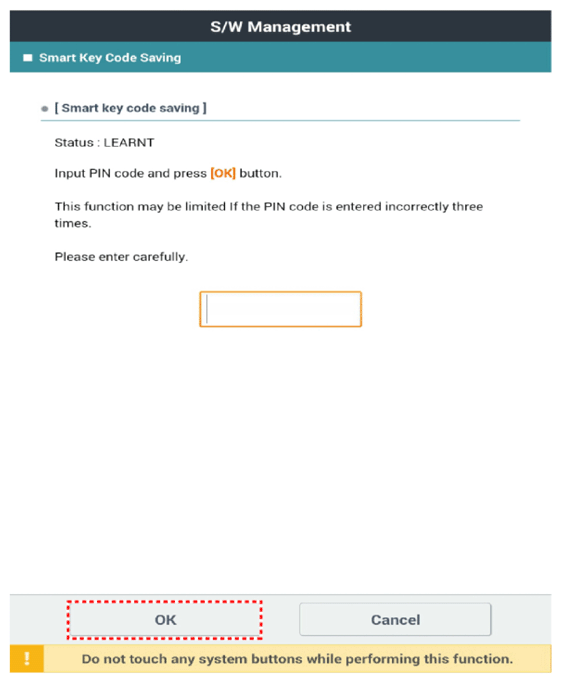

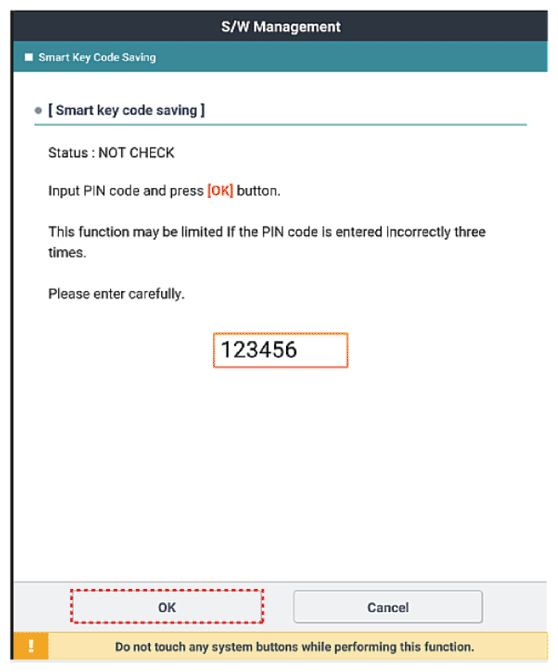

- Input the "Pin code" for first key teaching.

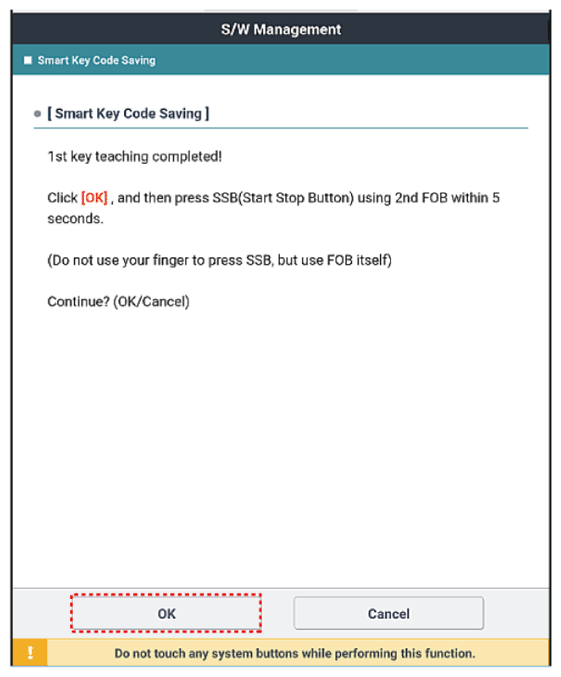

- Confirm the message "First key teaching completed".
- Press the SSB with smart key within 5 sec after pressing "OK".
- Confirm the message "Second key teaching completed".

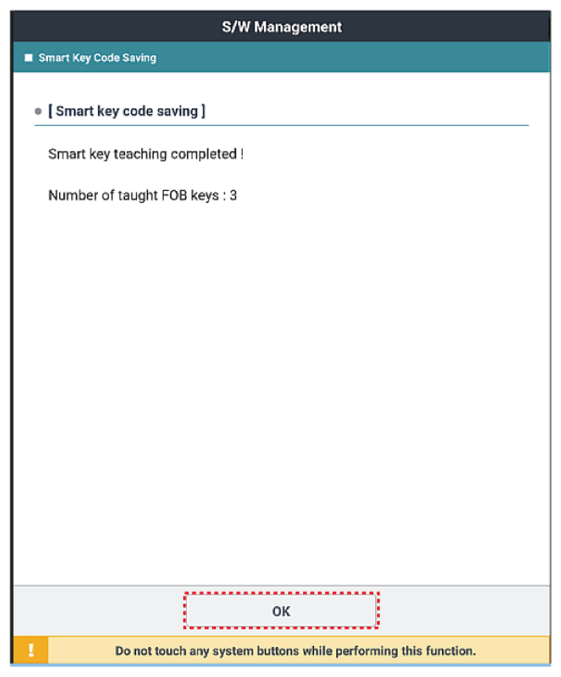

- Then the screen will be as shown in the following image when key teaching process is completed.
