2021 Kia Forte GT, Standard TransFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Installation

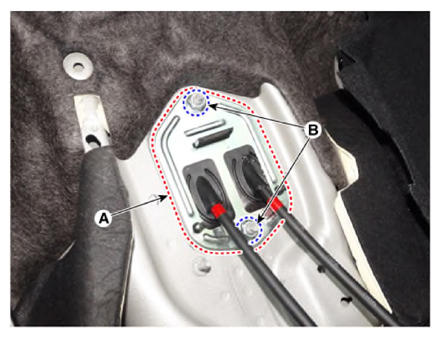

  1. Install the shift cable retainer (A) by tightening nuts (B).

    Tightening torque:

    11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)

    G13304044Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the select cable.

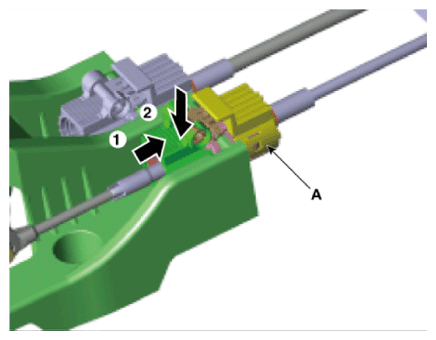

    1. Install the select cable (A) from the shift lever.
      G13304045Courtesy of KIA MOTORS AMERICA, INC.

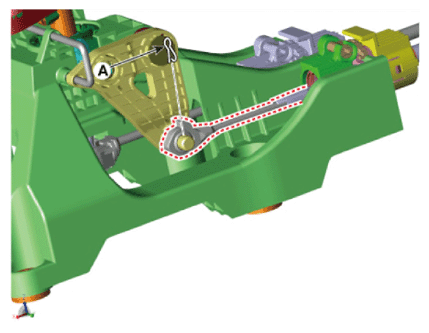

    2. Install the select cable to the lever pin and then insert the snap pin (A).
    G13304046Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the shift cable.

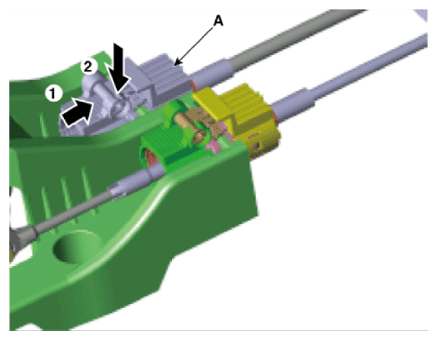

    1. Install the shift cable (A) from the shift lever.
      G13304047Courtesy of KIA MOTORS AMERICA, INC.
    2. Install the shift cable end (A).
  4. Check that the shift lever and control shaft are placed in the "4th" position and then install the 4th fixing pin (A).
    G13304048Courtesy of KIA MOTORS AMERICA, INC.
  5. Install the control cable.

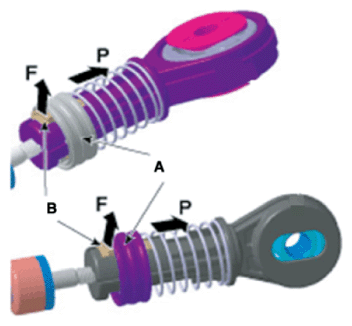

    1. After pulling the holder (A) in the direction of the "P", pull the lock (B) in the direction of the "F".
      G13304049Courtesy of KIA MOTORS AMERICA, INC.

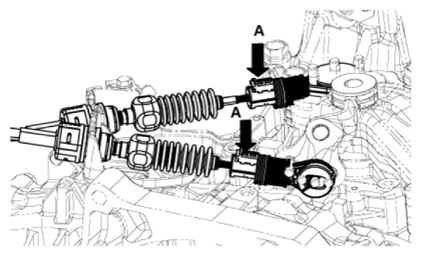

    2. Push the lock (A) after installing the control cable to the control shaft and cable bracket.
      G13304050Courtesy of KIA MOTORS AMERICA, INC.

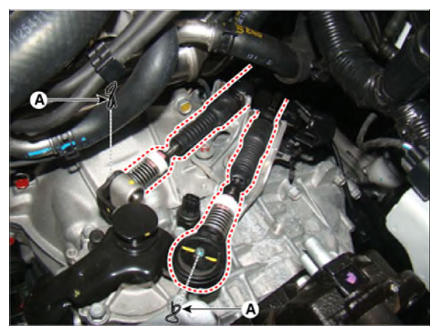

    3. Insert the snap pins (A).
    G13304051Courtesy of KIA MOTORS AMERICA, INC.

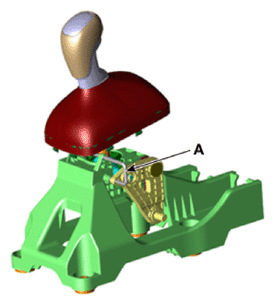

  6. Remove the 4th fixing pin (A).
    G13304052Courtesy of KIA MOTORS AMERICA, INC.
  7. Check for proper operation of control shaft lever when operated (1st, 2nd, 3rd, 4th, 5th, 6th, R gear).
  8. Install the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  9. Install the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  10. Install the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")
